PCI to Serial / RS232 2 x Ports and Parallel 1 x Port Card Adapter IEEE1284 Moschip MCS9865
Item # : 2234
Stock : Yes
Price LKR:
3,607.50
Product Description, Features and Technical Details :

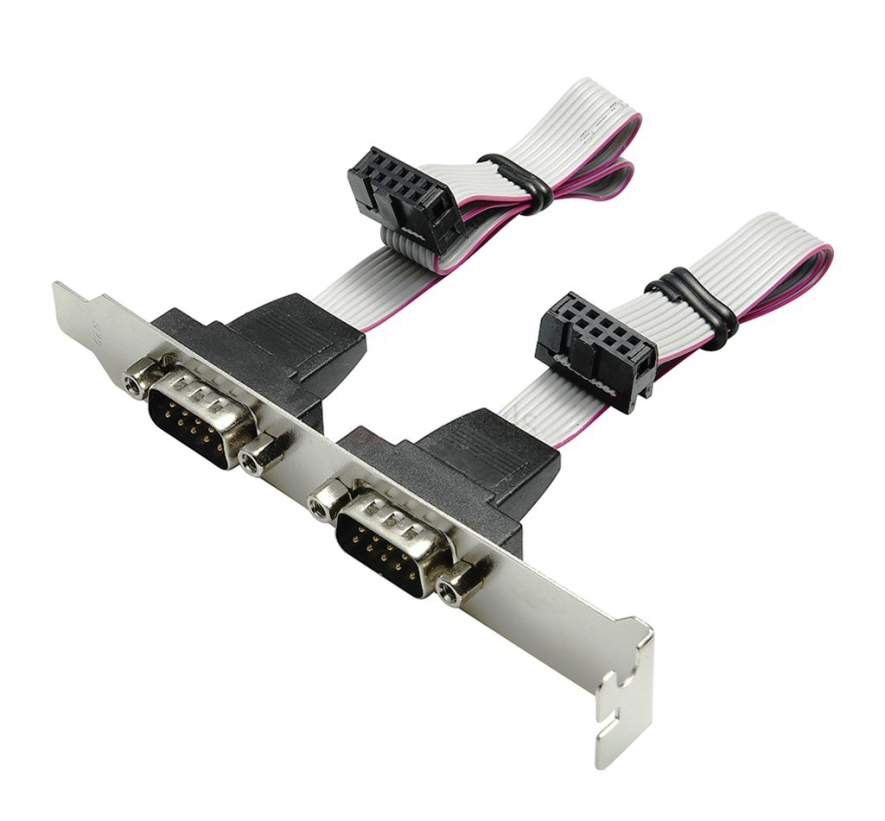

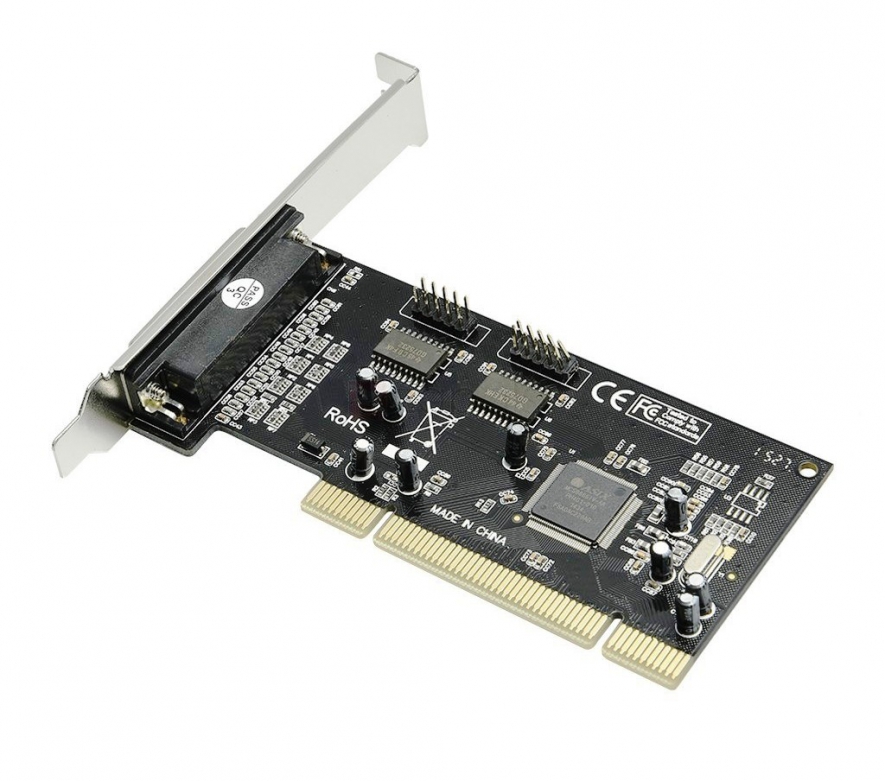

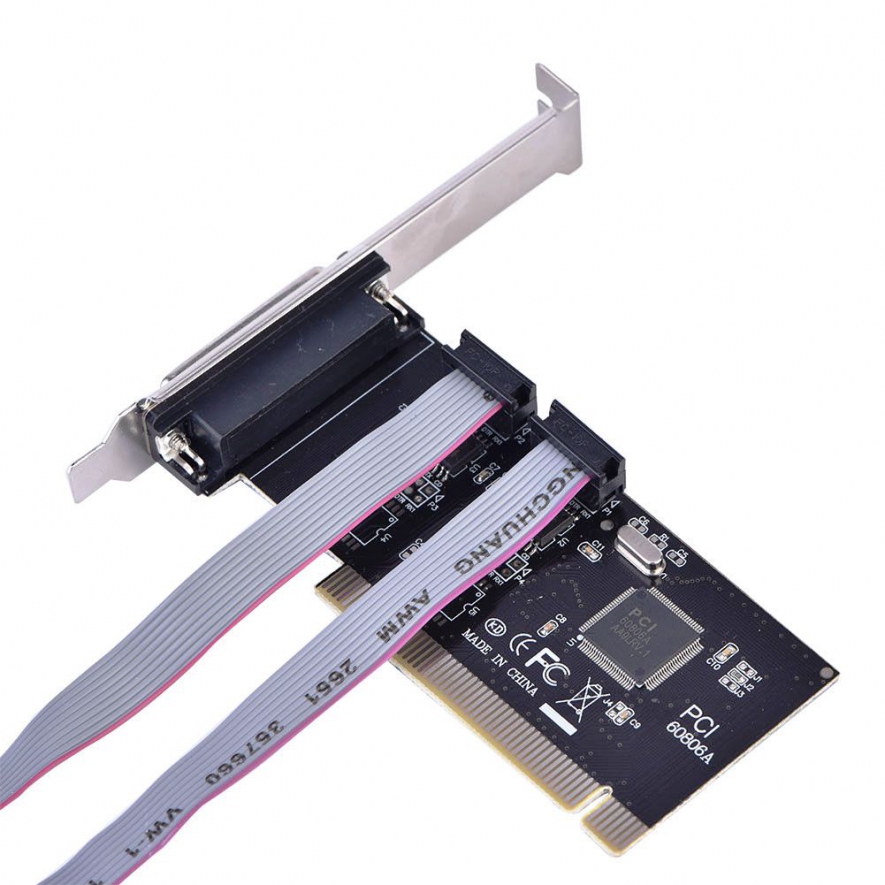

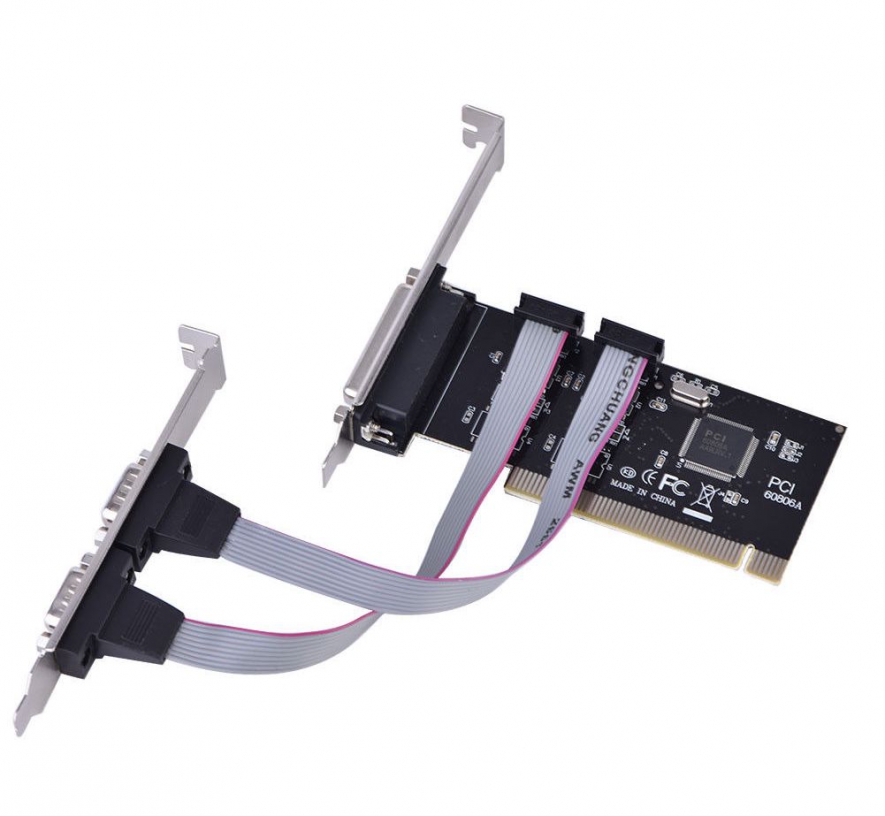

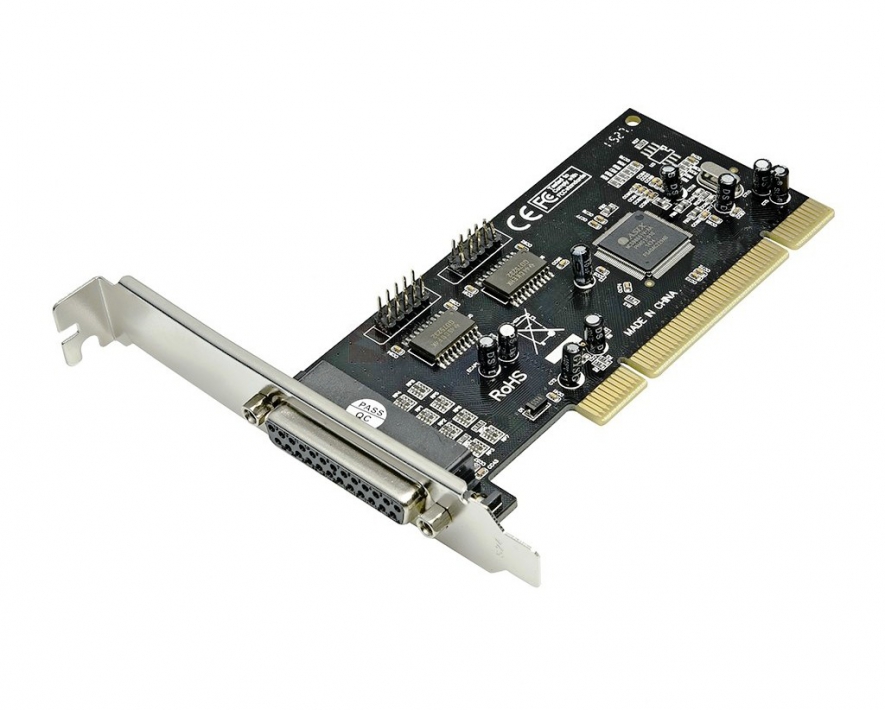

Description:This PCI to 2 RS232 Serial Ports + 1 Single Parallel LPT Port Adapter allows to connect more serial & parallel device to your computer easily. The product comes with 2 serial connector and 1 parallel connector.
Features:- Easy installation, automatically selects IRQ and I/O address.
- Fully compliant with PCI Local Bus Specification Revision 2.3.
- Supports PCI power management.
- Supports PCI IRQ sharing feature, saves valuable resources for other add-on cards.
- Supports multiple cards on one PC.
- Serial Port (RS232) interface
- Compatible with industrial standard 16C550 UART.
- On-chip 256-byte depth FIFO in Transmit & Receive paths of each port.
- Fast Data rate up to 115.2K bits/sec on each port.
- Supports hardware and software flow control.
- Supports 5-, 6-, 7-, 8-, 9- bit serial format.
- Supports Even, Odd, None, Space & Mark parity.
- Supports 1 or 2 Stop bit operation.
- Parallel Port (IEEE1284) interface
- Supports SPP, PS2, EPP and ECP 1.9 mode.
- Fast data rate up to 1.5MBps On-chip 256-byte FIFO.
Specifications:- Type : PCI-E PCI Express PCIE TO 1P2S Card Adapter
- Chip : MCS9865
- Data length : 5, 6, 7, 8, 9
- Check : none, even, odd, space, mark
- Stop bit length : 1, 2
- Ports: 1 x Parallel, 2 x Serial (RS232) , PCI
- Transfer Rate : 1M Bytes/sec
- System : Windows 2003/XP/Server 2003 64/Vista/Win7/Win8/2008, Linux, Dos
- Weight : 120g
System Requirements:- PC with 32-bit PCI slot, can be installed in 64-bit PCI slot of the IPC
- MS Windows 98SE / Me / 2000 / XP / NT4.0, Linux, DOS

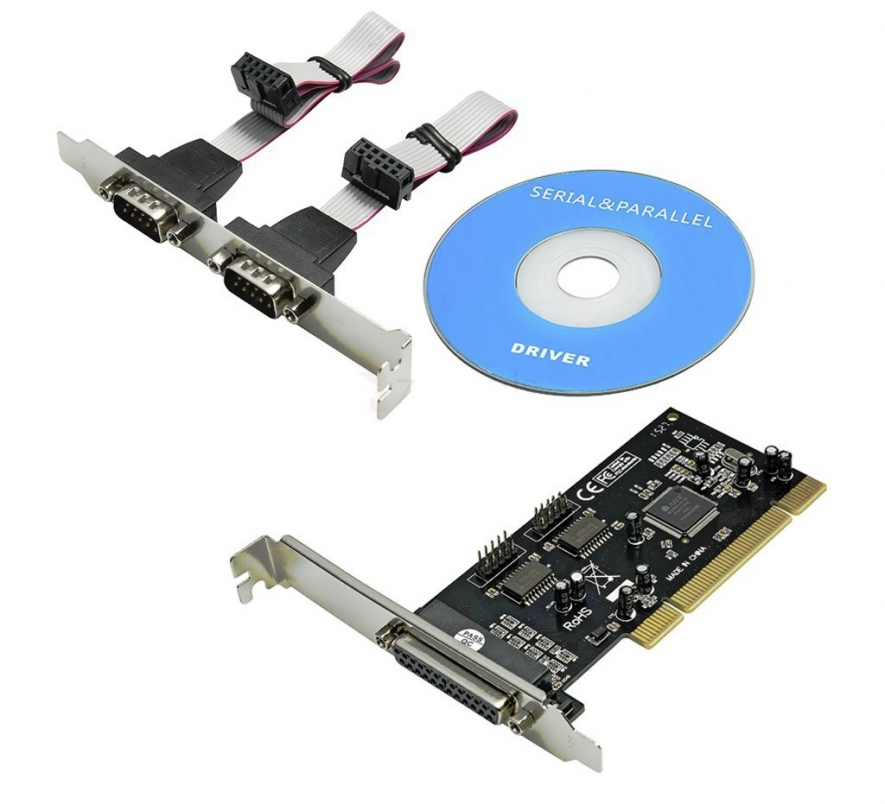

Package Include:1 x PCI Serial Parallel Card
1 x Mini Driver CD
Note:
ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY. ACTUAL PRODUCT MAY SLIGHTLY VARY DUE TO PRODUCT ENHANCEMENT AND LIGHTING.
PCI to Serial 2 Ports / RS232 and 1 Port Parallel Card
Price LKR: 3,607.50 Item # : 2234
