General Information

Manufacturer:

GIGABYTE Technology, Inc

Manufacturer Part Number:

GA-H81M-DS2

Manufacturer Website Address:

http://www.gigabyte.com

Brand Name:

Gigabyte

Product Model:

GA-H81M-DS2

Product Name:

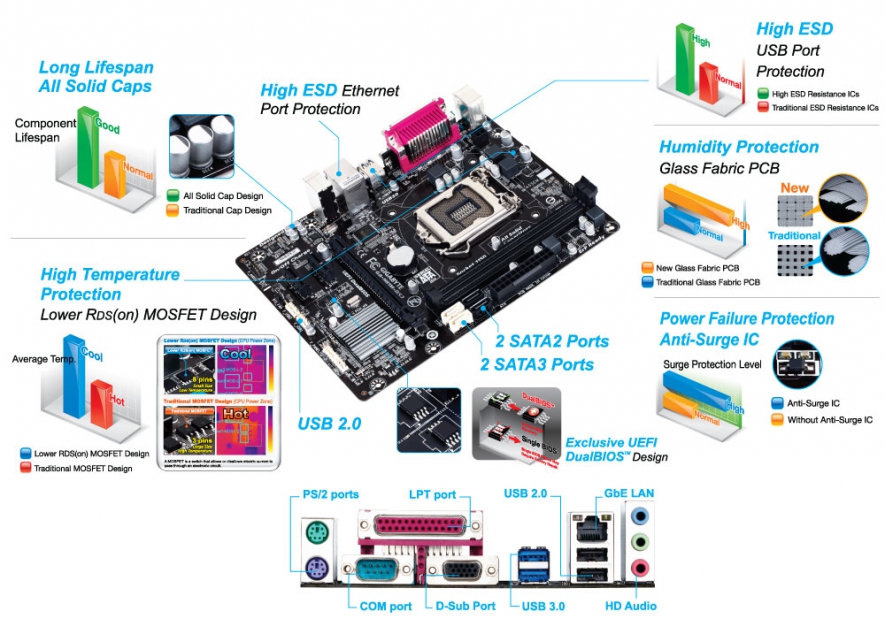

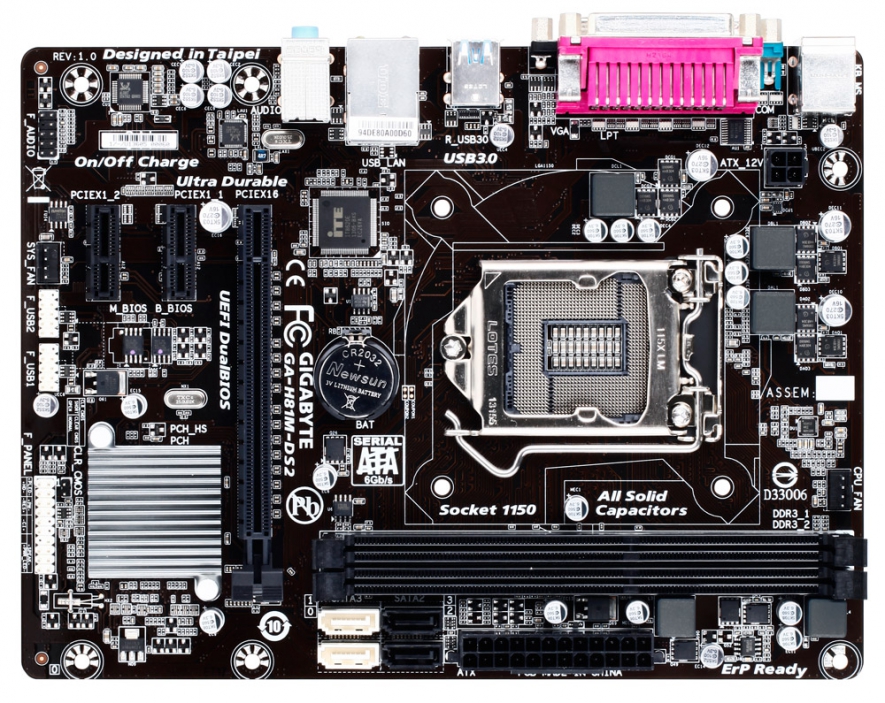

Ultra Durable 4 Plus GA-H81M-DS2 (rev. 1.0) Desktop Motherboard

Package Type:

Retail

Product Type:

Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:

Intel

Chipset Model:

H81

Total Processor Supported:

1

Processor Socket:

Socket H3 LGA-1150

Processor Supported:

Core i7, Core i5, Core i3, Pentium, Celeron, Xeon

64-bit Processing:

Yes

Memory

Number of Memory Slots:

2

Memory Form Factor:

DIMM

Maximum Memory:

16 GB

Memory Standard:

DDR3-1600/PC3-12800, DDR3-1333/PC3-10600

Memory Technology:

DDR3 SDRAM

I/O Controller

Controller Type:

Serial ATA/600, Serial ATA/300

Video

Onboard Video:

CPU Dependent Video

Graphics Controller Manufacturer:

Intel

Graphics Controller Memory:

1 GB

Graphics Memory Technology:

DDR3 SDRAM

Graphics Memory Accessibility:

Shared

Audio

Sound Controller Manufacturer:

Realtek

Sound Controller Model:

ALC887

Audio Channels:

7.1

Network & Communication

Gigabit Ethernet:

Yes

I/O Expansions

Number of Total Expansion Slots:

3

PCI Express Standard:

PCI Express 2.0

Total Number of PCI Express Slots:

3

Number of PCI Express x1 Slots:

2

Number of PCI Express x16 Slots:

1

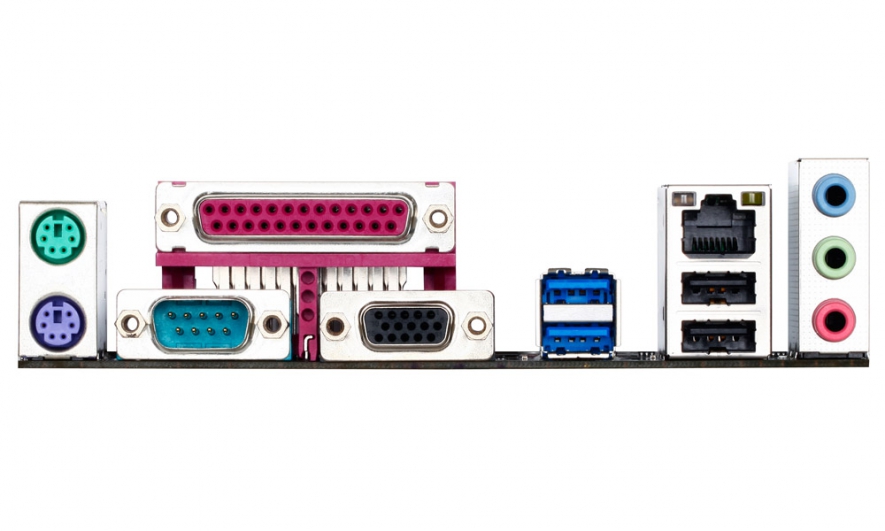

Interfaces/Ports

Total Number of USB Ports:

4

Number of USB 2.0 Ports:

2

Number of USB 3.0 Ports:

2

Parallel Port:

Yes

Serial Port:

Yes

Audio Line In:

Yes

Audio Line Out:

Yes

Microphone Port:

Yes

VGA:

Yes

Network (RJ-45):

Yes

Number of Network (RJ-45) Ports:

1

PS/2 Port:

Yes

Number of PS/2 Ports:

2

Onboard Interfaces

Number of SATA Interfaces:

4

Total Number of Onboard USB Ports:

4

Number of Onboard USB 2.0 Ports:

4

Onboard Audio Header:

Yes

Power Description

Power Supply Supported:

ATX12V

Physical Characteristics

Form Factor:

Micro ATX

Width:

226.0 mm

Depth:

170.0 mm

Miscellaneous

Package Contents:

·         Ultra Durable 4 Plus GA-H81M-DS2 (rev. 1.0) Desktop Motherboard

·         Bundle Software

Certifications & Standards:

·         ACPI 2.0a

·         CE

·         FCC

·         BSMI

Green Compliant:

Yes

Green Compliance Certificate/Authority:

WEEE, China RoHS, ErP Ready

Warranty

Limited Warranty:

1 Year
