Extender HDMI 60m KVM HD 1080P with IR and USB
Item # : 3198
Stock : Yes
Price LKR:
16,200.00
Product Description, Features and Technical Details :
Product Details:
- Brand:Non Branded
- Model No:No Mode
- Product Type:Extender
- Color:Gray
- Condition:New
- Included Quantity:1
Product Description:

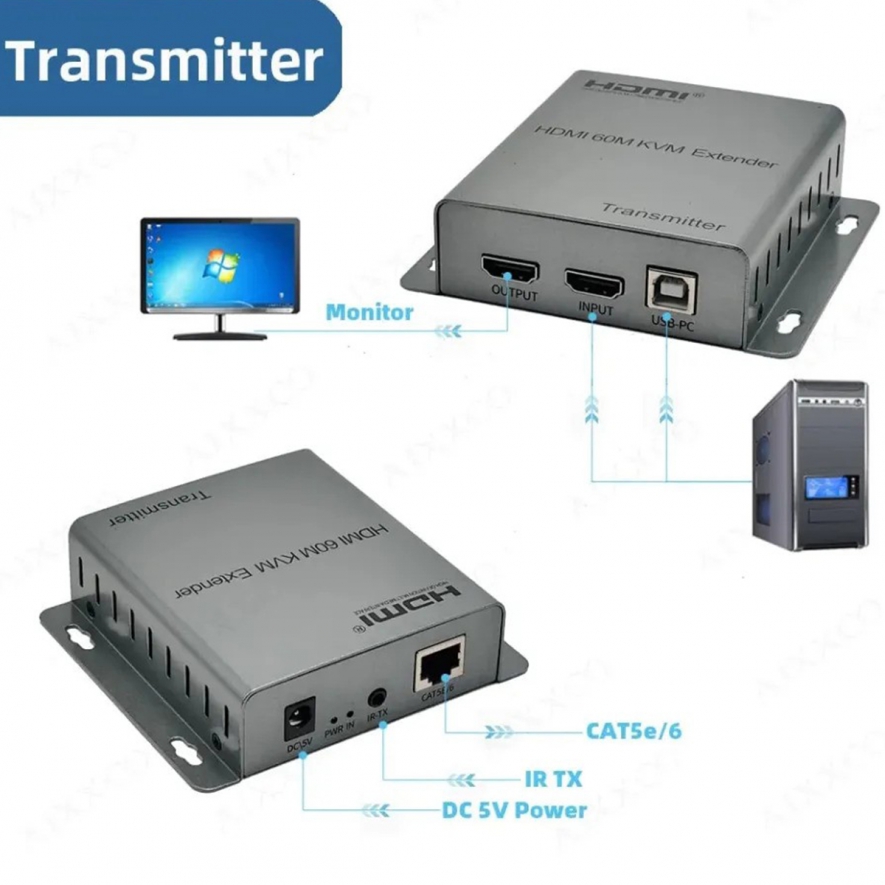

- Connect One HDMI Cable Between Source Device And TX Extender,The Max Cable Distance Is 10 Meters.

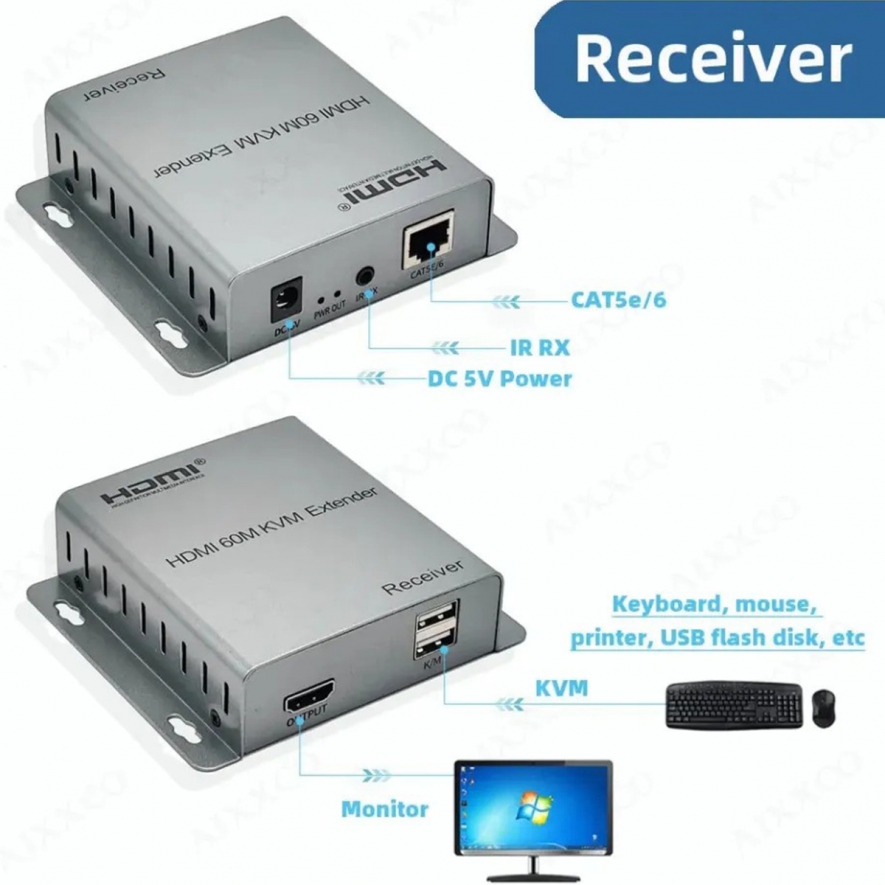

- Connect One HDMI Cable Between Source Device And RX Extender,The Max Cable Distance Is 15 Meters.

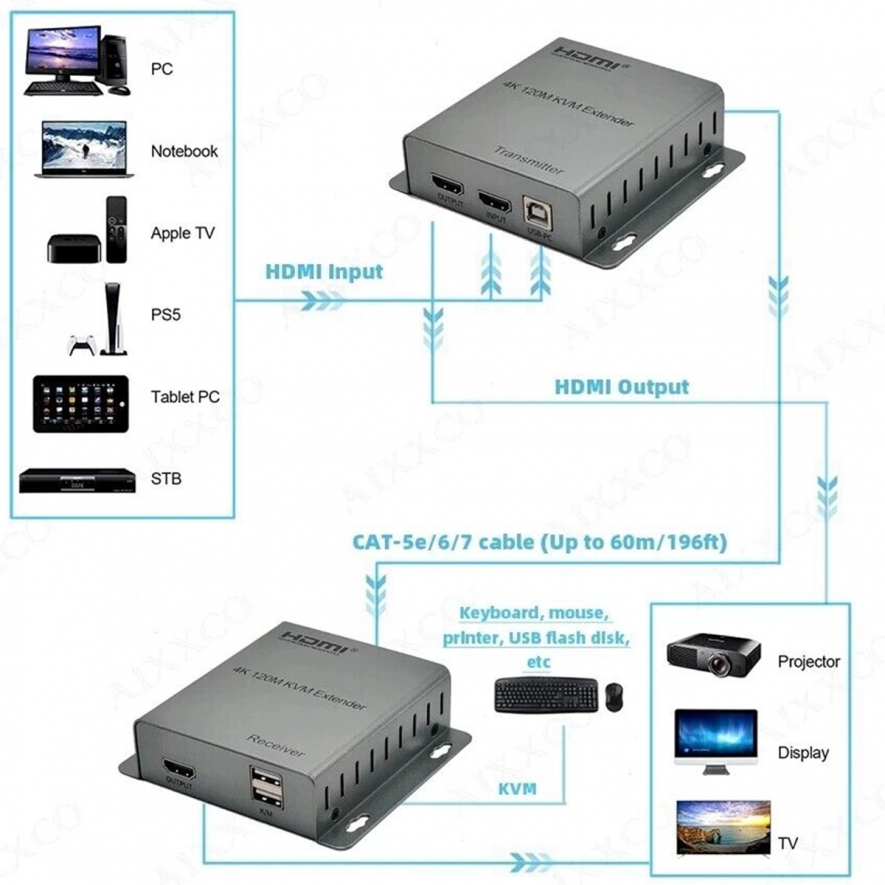

- Connect Single Cat-5e Or Cat -6 (Recommended) Cables Instead Of HDMI Cables Between TX And RX Extender, The Max Cable Distance Is 60Meters.
- Connect 5V Power Supply To The TX And RX.
- Plug The IR Receiver Cadle Into The IR Receiver Cable,And IR Transmitter Cable Plug Into The Transmitter If You Need The IR Receiver Cable,Aim At The Equipment Which Needs To Control.
- plug The Mouse And Keyboard Into Two USB Port Of The Receiver,And Connect The USB Port Of The Transmitter With The Computer If You Need The KVM Control Function.
Specification:
- RX Weight:231G.
- TX Weight:233G.
- Max Bandwidth:150MHz.
- Max Baud Rate:4.5Gbps.
- TX Max Working Current:450mA.
- RX Max Working Current:350mA.
- Output DDC Signal:5Volts p-p (TTL).
- Input Video Signal:0.5~1.5Volts p-p.
- Dimensions (L x W x H x):95 x 83 x 28 (mm).
- Operating Temperature Range:(-15 To +45°C).
- Operating Humidity Range:5 To 90%RH (No Condensation).
- HDTV Input:1080p / 1080i / 720p / 576p / 576i / 48p / 480i.
- HDTV Output:1080p / 1080i / 720p / 576p / 576i / 480p / 480i.
- Input HDTV Cable Distance:<10m AWG 26 HDTV Standard Cable.
- Output HDTV Cable Distance:<15m AWG26 HDTV Standard Cable.
- Length Of CAT-6 / CAT-5E Cable Between RX And TX:Up To 60 Meters.
- Power Adapter Format:Input:AC (50HZ, 60HZ) 100V 240V; Output:DC5V,1A.
Features:
- Support IR Control.
- Support 1080P / 60Hz.
- Support Local Loop Out.
- Support 60m Long Distance transmission.
- Support USB Mouse And Keyboard Extension.
- Low Power Consumption,Low Temperature And High Safety.

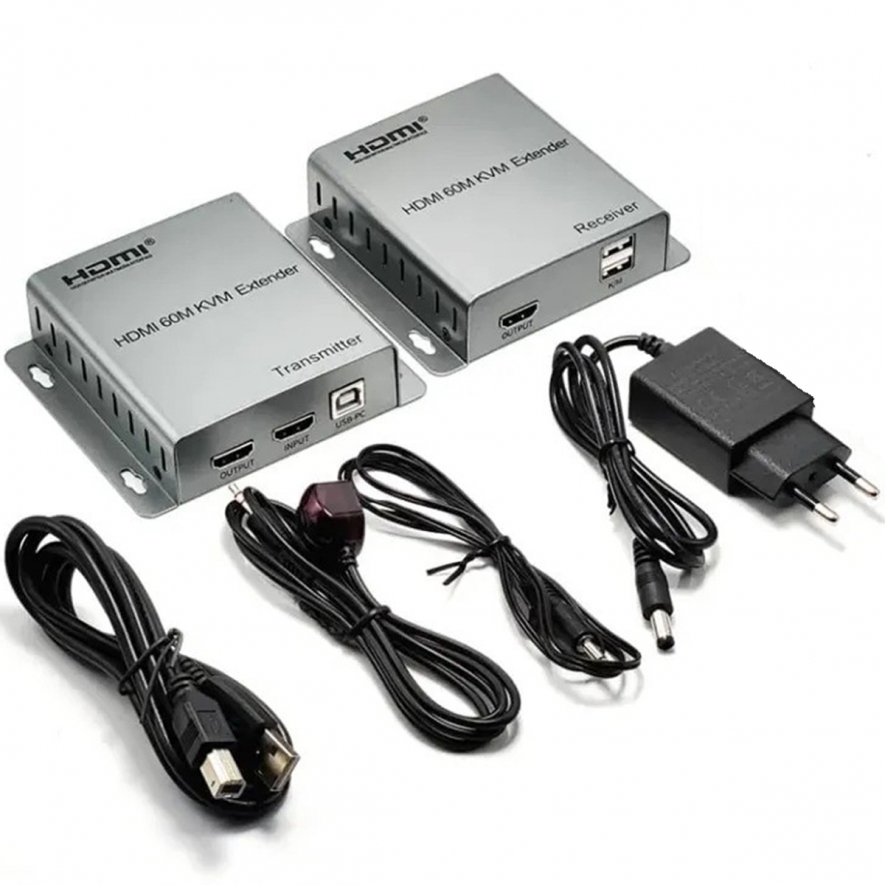

Package Included:
- 1x Extender HDMI 60m KVM HD 1080P with IR and USB
- 1x Power Adapter
- 1x USB Printer Cable
- 2x IR Cable
- 1x User Manual
NOTE:
1) ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY.
2) ACTUAL PRODUCT MAY SLIGHTLY VARY DUE TO LIGHTING EFFECTS, MONITOR BRIGHTNESS AND CONTRAST SETTINGS, WEBSITE'S PHOTO QUALITY AND PRODUCT ENHANCEMENT.
3) PLEASE ALLOW A LITTLE SIZE ERROR DUE TO MANUAL MEASUREMENT.
THANK YOU!
