Home --> Capture Card --> 4K HDMI USB Capture Card Recorder with Loop HDMI Out 1080p USB2.0

Product Description, Features and Technical Details :

Description:
This video capture card can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for preview and storage.
Plug and play, no need to install other driver software, suitable for high definition acquisition, teaching recording, medical imaging, etc.
Support AWG26 HDMI standard cable: input up to 15 meters, (1080P and below resolution).

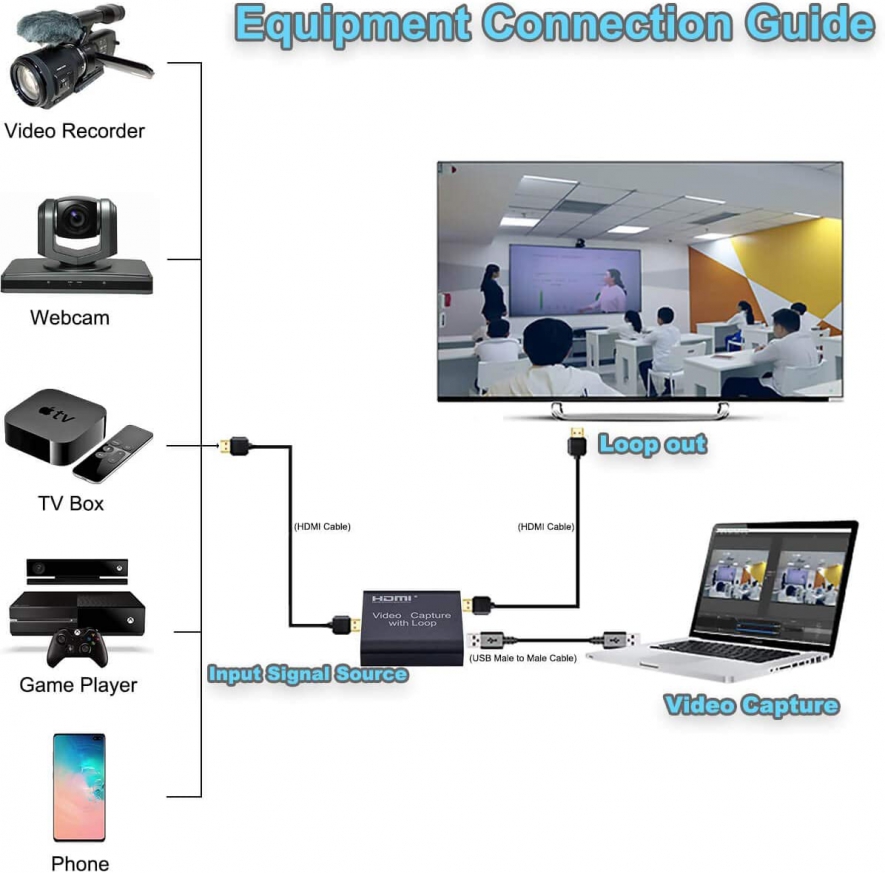

How to connect?
Micro USB power cable connects to Micro USB port to supply power
Input port: input the stream video through the HDMI "Input" port.
Output port: connect the monitor through the HDMI "Output" port to preview the stream video in real time.
Connect it to the computer through the USB 2.0 port, use "VLC / OBS / Amcap, etc" to edit the video at the same time.

Features:
Support HDMI loop out
Support input HDMI max 4K@60Hz, max output HDMI & USB 1080P@30Hz
Support most acquisition software, such as VLC,OBS ,Amcap, etc;
Support Windows,Android and MacOS
Conform to USB Video and UVC standard
Conform to USB Audio UAC standard
Support video format 8/10/12bit Deep color
Video output format YUV,JPEG
Support audio format L-PCM
Max working current 0.7A/5V DC
Operating Temperature range (-10 to +55?)
Dimension (L x W x H) 59x56x19 (mm)

Package include:
1 x HDMI to USB Audio Video Capture Card USB2.0 with Loop HDMI Out

4K HDMI USB Capture Card Recorder with Loop HDMI Out 1080p USB2.0

Price LKR: 7,800.00         Item # : 3686
