Expert Connect | 4K 400ft HDMI Extender Over Cat5e / Cat6 / Cat7 Ethernet Cable with Loop-Out, IR Control, Cascading
Item # : 2882
Stock : Yes
Price LKR:
25,500.00
Product Description, Features and Technical Details :
Product Details:- Brand:NO
- Connector Type:USB Type C, HDMI
- Cable Type:HDMI, Lightning, Ethernet
- Compatible Devices:Monitor, Television, DVD Player
- Ethernet cable category:Cat 6
Product Description:- Extends 4K@30Hz/ 1080p up to 400ft via Cat5e / Cat6 / Cat7 Ethernet Cable | Max. 50ft on each HDMI cable | HDMI 1.4, HDCP 1.4
- Supported Video Resolutions - 4K@30Hz, 1080P, 1080i, 720p, 576p, 576, 480p, 480i; Supported Audio Formats - Dolby Digital, Dolby TrueHD, DTS, DTS-HD, Dolby-AC3, DSD, LPCM7.1

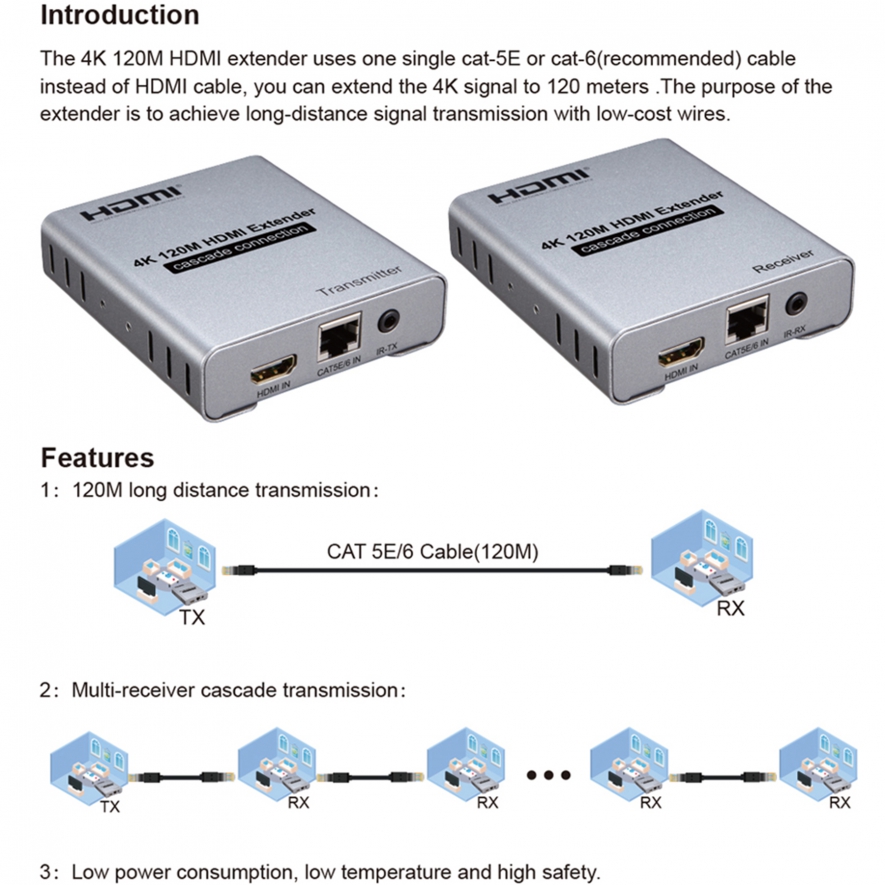

- Local Loop Out - Allows one additional display on the signal sending side provides convenience for monitoring; Remote IR Control - Control the input HDMI video source (e.g. DVD player) from the display (e.g. TV, monitor) location with the included IR sensor cables; Cascading - Allows 1-to-1 or 1-to-multiple extension with additional Receiver unit.
- Premium Product Quality - Provides 8000v industry-level surge protection against static electricity and lightning strikes; Latest Innovation – Newly-designed isolation transformer enhances your signal for stable transmission over longer distances and also isolates the core for added protection from power surges and lightning strikes.
Specification:- Brand Name:No
- Connector B: RJ-45,HDMI-Compatible
- Gender: Female-Female
- Model Number: 4K 120M HDMI Extender Cascade Connection
- Origin: Mainland China
- Type: HDMI-Compatible Cables
- Connector A: HDMI-Compatible
- Package: No
- Bundle: Bundle 1
- Packing: Poly bag
- Certification: CE
- Shielding: Combination
Features:- Length of CAT-5E/CAT-6 cable between Rx and TX: up to 120 meters
- HDMI input: 4K/1080p/720p/576p/576i/480p/480i
- Support audio format: DTS/Dolby/LPCM
- HDMI output: 1080p/720p/576p/576i/480p/480i
- Max bandwidth: 340MHz
- Max baud rate: 3.4x3Gbps
- Input video signal: 0.5~1.5Volts p-p
- Output DDC signal: 5Volts p-p (TTL)
- Input HDMI cable distance: ?15m AWG26 HDMI standard cable
- Output HDMI cable distance: ?15m AWG26 HDMI standard cable
- TX Max working current: 350mA
- RX Max working current: 200mA
- Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
- Operating Temperature range: (-15 to +55?)
- Operating Humidity range: 5% to 90%RH (No Condensation)
Compatible Devices:- Computer / Laptop
- DVD Player / Blu-Ray
- Play Station / Xbox / NS
- Security Surveillance
- Satellite Box / Cable Box
Package Included:- 1 PCs x Transmitter
- 1 PCs x Receiver
- 1 PCs x IR cable
- 1 PCs x 5V/1A Power adapter
- 1 PCs x User manual
NOTE:
1) ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY.
2) ACTUAL PRODUCT MAY SLIGHTLY VARY DUE TO LIGHTING EFFECTS, MONITOR BRIGHTNESS AND CONTRAST SETTINGS, WEBSITE'S PHOTO QUALITY AND PRODUCT ENHANCEMENT.
3) PLEASE ALLOW A LITTLE SIZE ERROR DUE TO MANUAL MEASUREMENT.
THANK YOU!

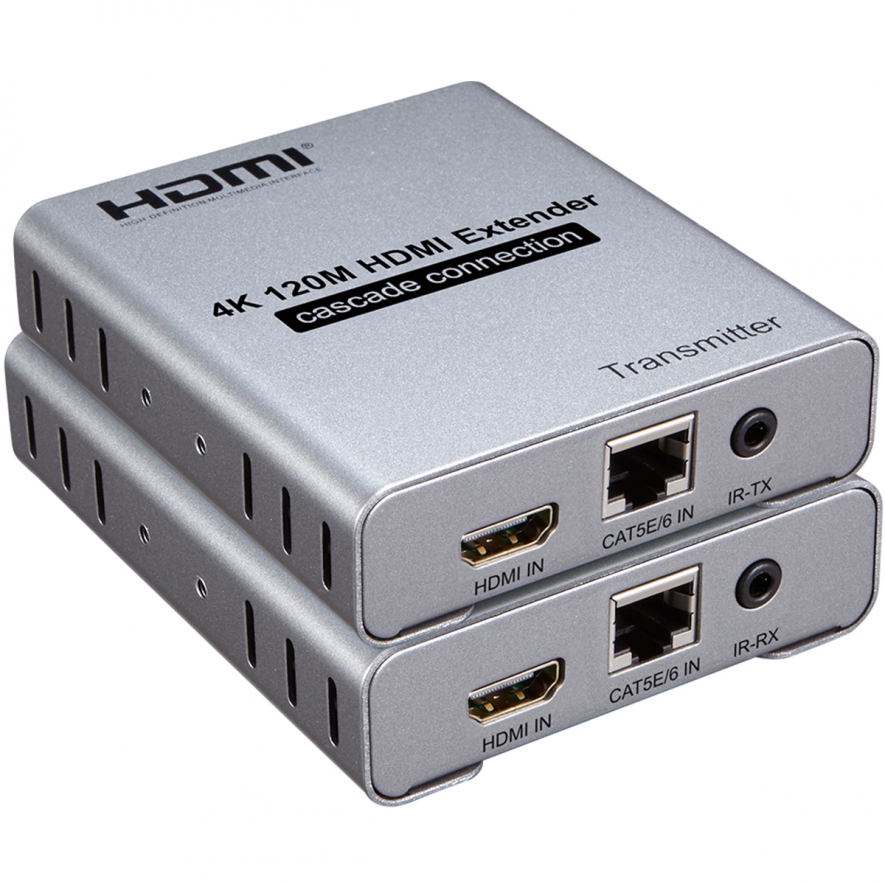

4K 120M HDMI EXTENDER CASCADE CONNECTION
