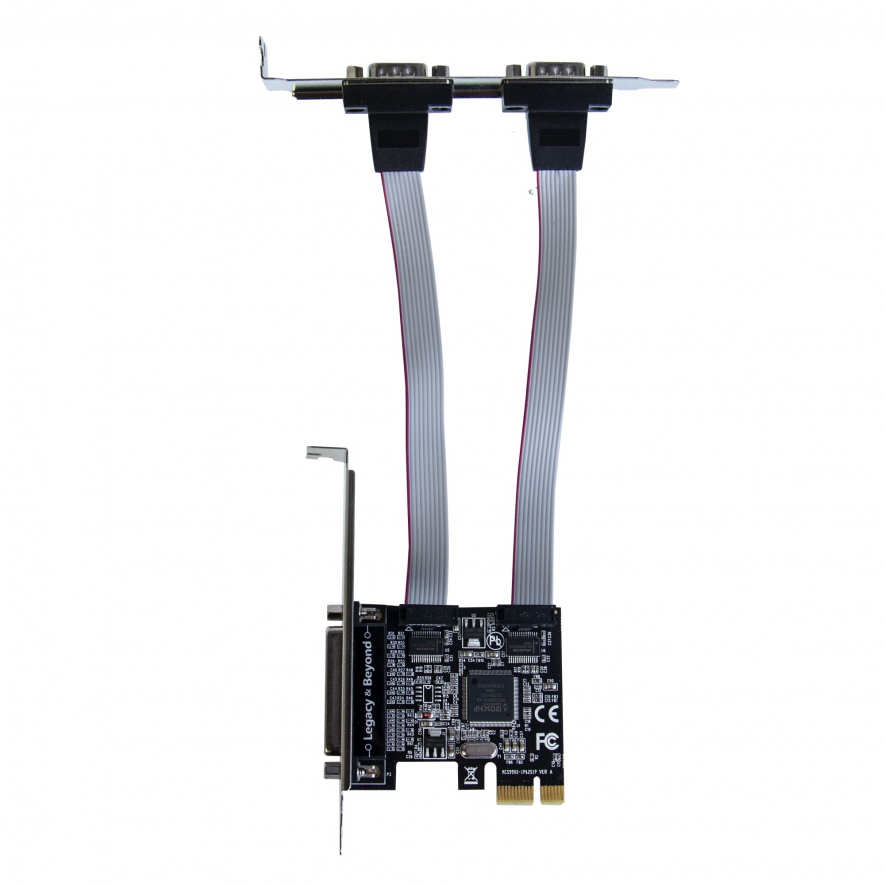

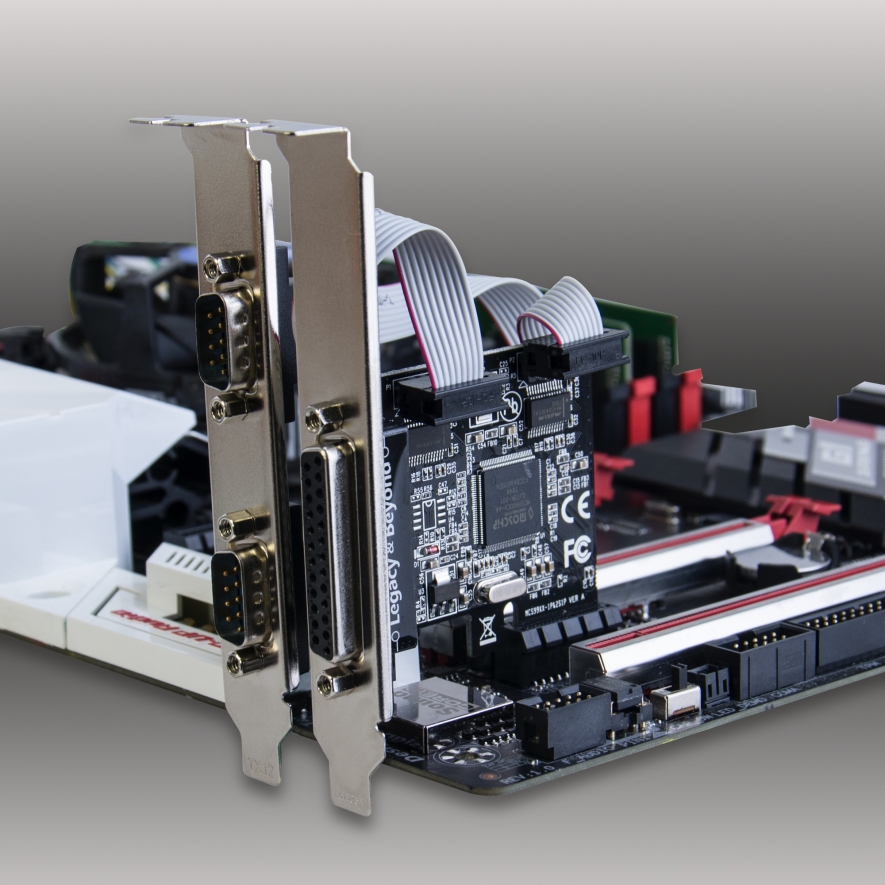

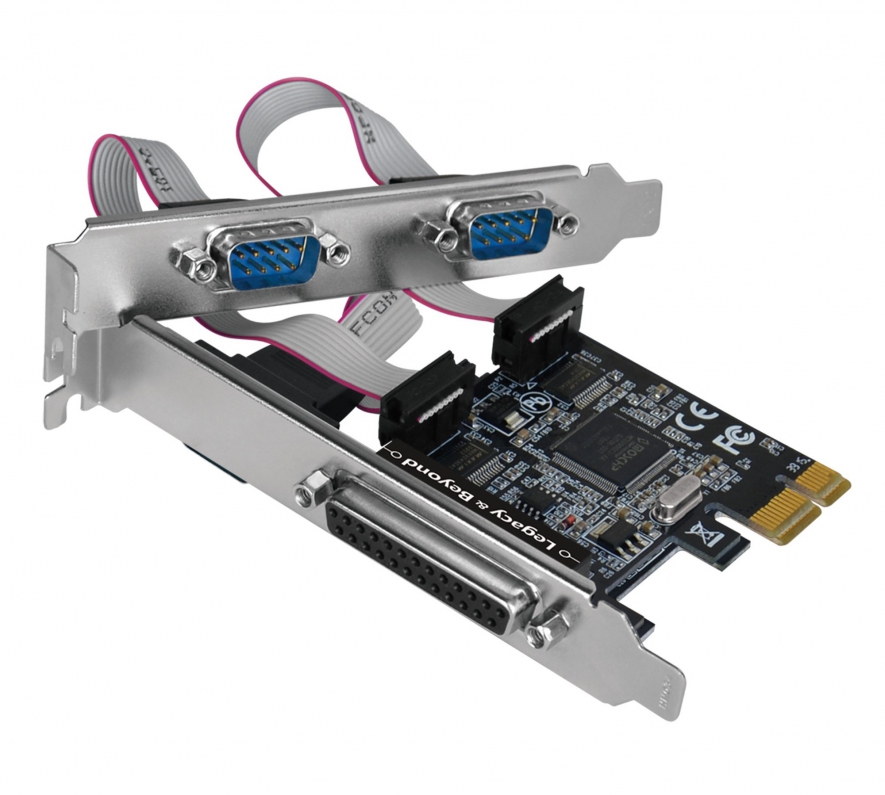

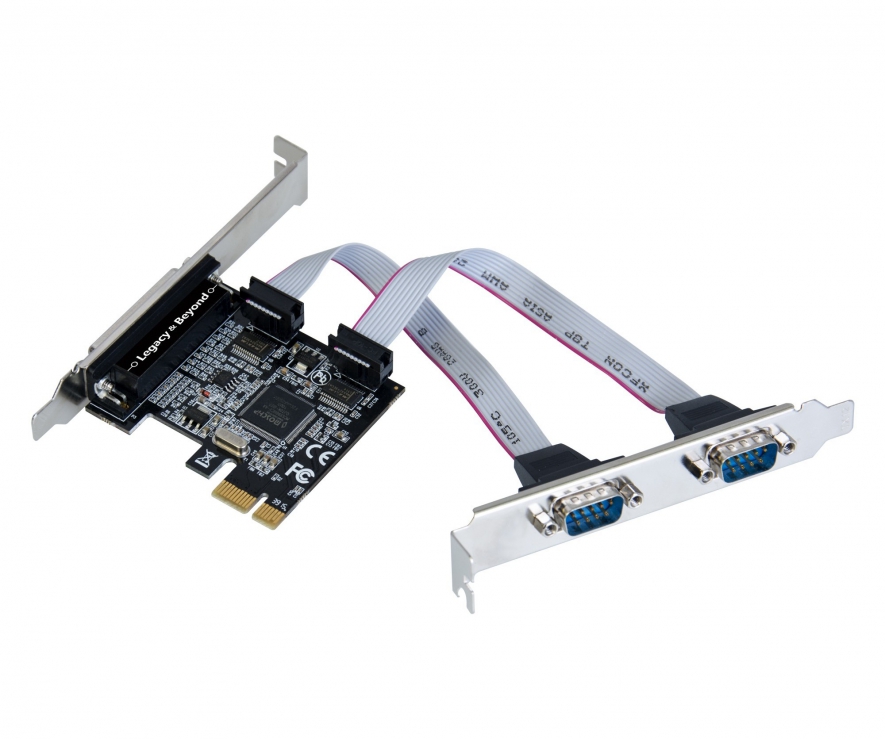

PCIe PCI Express Serial Parallel Combo Card Dual Serial Ports + Single Parallel Port
Item # : 3067
Stock : Yes
Price LKR:
3,500.00
Product Description, Features and Technical Details :
Overview:
- Adds two RS-232 serial ports and one parallel port to a PCI Express enabled computer.
- Quickly adds two serial ports and one parallel port through an available PCI Express slot.
- Supports serial port data transfer rates up to 115.2 Kbps, compatible with 16C550 UART.
- 256-byte depth FIFO buffer supports fast data transfer especially in a multitasking environment.
- Parallel port supports ECP, EPP and SPP modes, compliant with IEEE 1284 standard.
- Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc.
Specifications:
- Chipset: ASIX/MosChip MCS9900CV-AA
- Bus connector: PCI Express x1
- Version: PCI Express 1.1
- Baud rate: Up to 115.2 Kbps
- FIFO: 256 Bytes
- UART: 16C550
- Connectors:
- 2 x 9-pin RS-232, Male
- 1 x 25-pin Parallel port, Female
- Product:
- Dimensions: 4.72" (W) x 0.79" (H) x 3.07"(D)
- Weight: 0.18 lbs
- Color: Black
- Environmental conditions:
- Operating temperature: 32 to 140 degrees F
- Storage temperature: 14 to 158 degrees F
- Relative humidity: 5% to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
Package Include:
1 x PCI Express Serial Parallel Combo Card.
1 x Mini Driver CD.
2 x Low Profile Brackets.
NOTE:
1) ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY.
2) ACTUAL PRODUCT MAY SLIGHTLY VARY DUE TO LIGHTING EFFECTS, MONITOR BRIGHTNESS AND CONTRAST SETTINGS, WEBSITE'S PHOTO QUALITY AND PRODUCT ENHANCEMENT.
3) PLEASE ALLOW A LITTLE SIZE ERROR DUE TO MANUAL MEASUREMENT.
PCI Express Serial Parallel Combo Card
Price LKR: 3,500.00 Item # : 3067
