Power Supply Tester 20 24 Pin Sata LCD PSU HD ATX BTX Voltage Tester

Item # : 1556

Stock : Yes

Price LKR: 3,800.00

Share this product with :

Product Description, Features and Technical Details :

Product Details:

Brand:No Brand
Model:No Model
Product Type:Power Supply Tester
Condition:New
Color:Black
Included Quantity:1

Product Description:

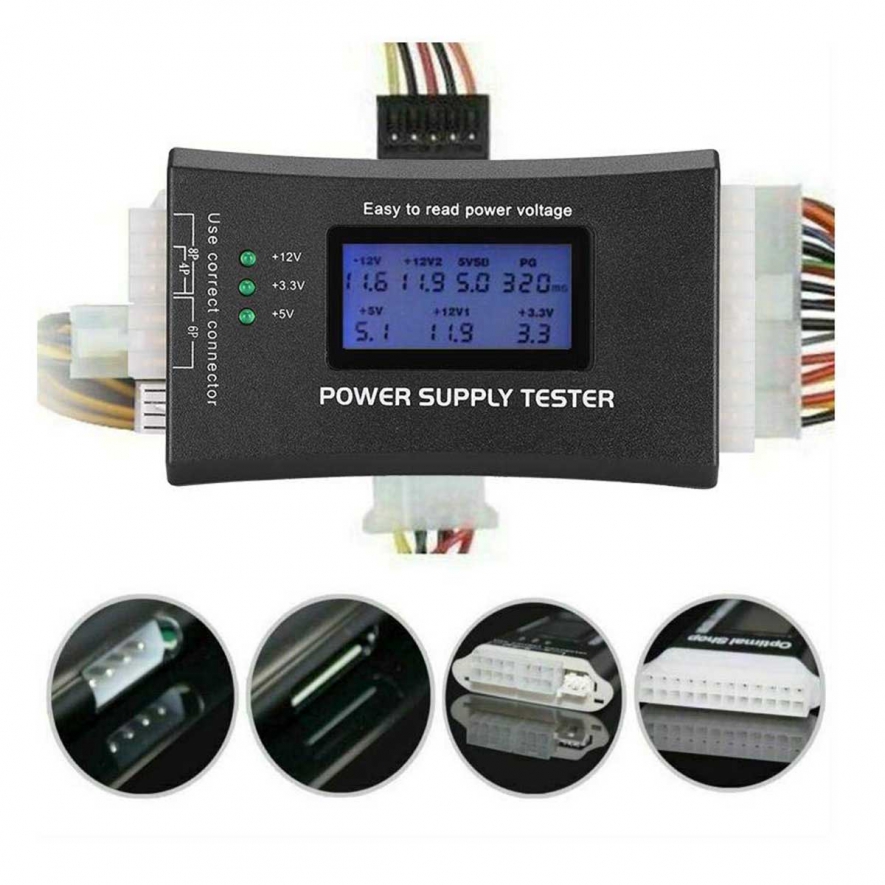

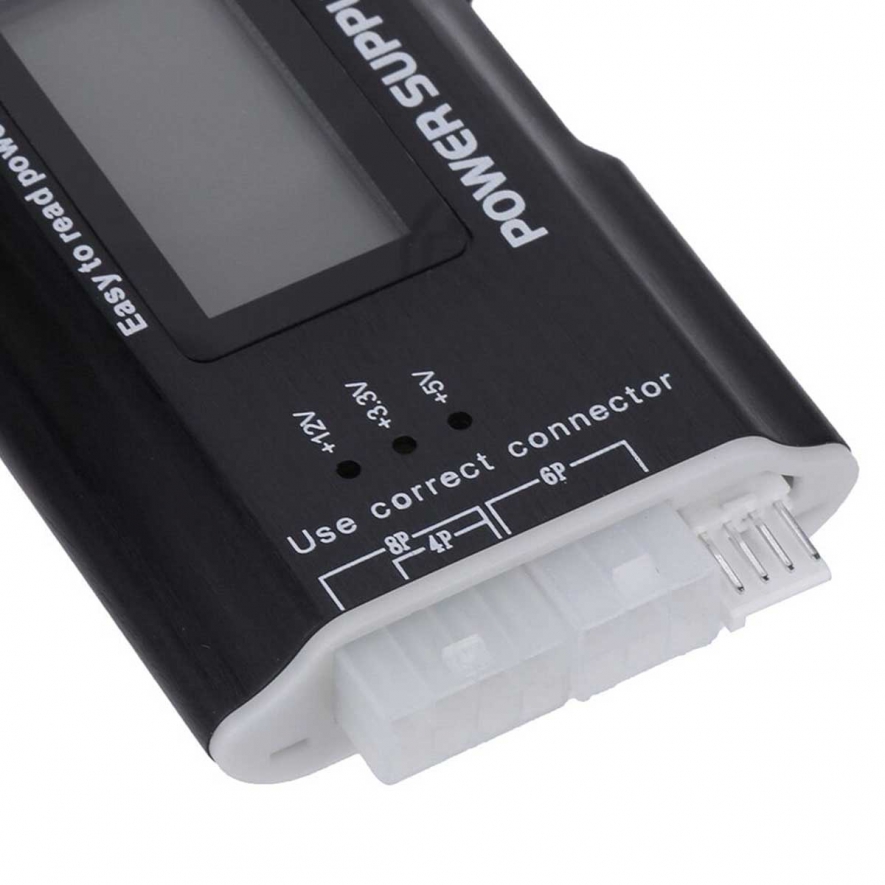

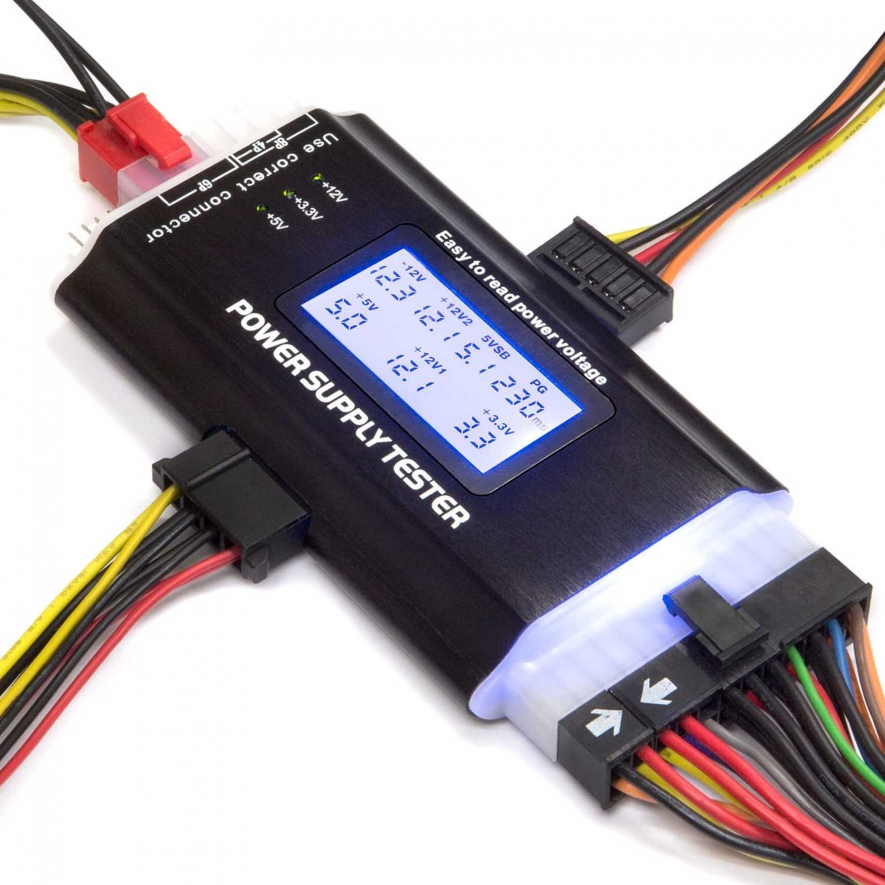

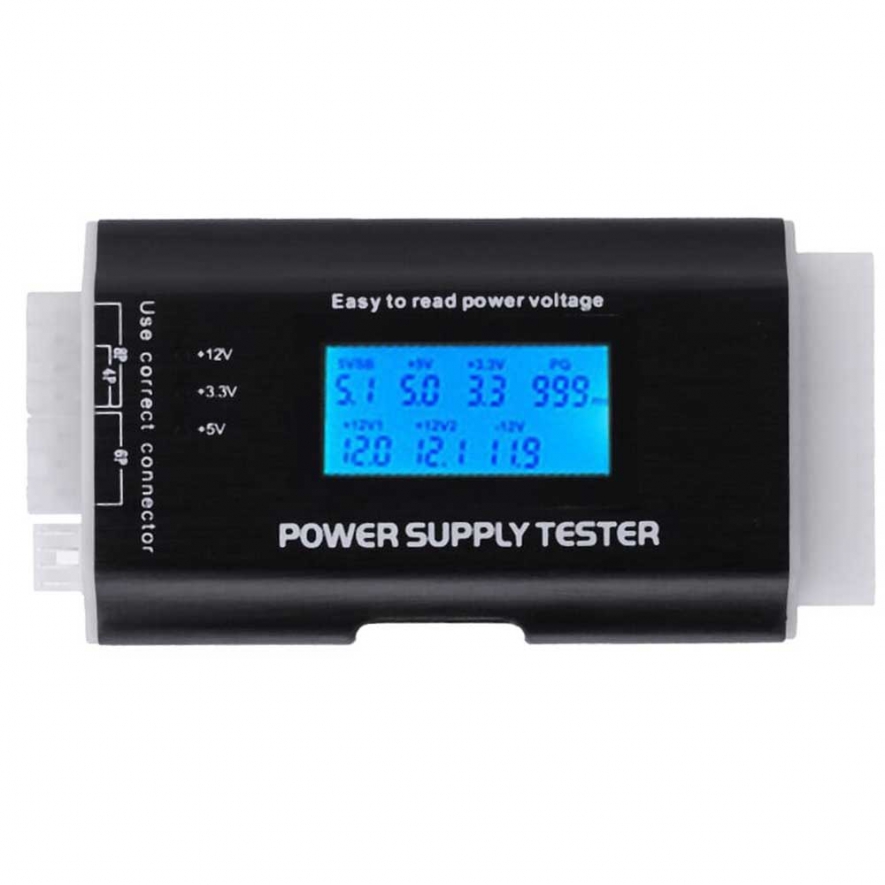

The power supply tester is a robust voltage tester for PC-power supplies. ATX . BTX, and ITX compliant power supplies can be tested. LCD's indicate the status of voltage
The PC / SPS is suitable for the ambitious hobbiest, as well as for a quick functional check in a special trade
Plug power supply 24 PIN and P4, P6, or P8 into the corresponding jack of the power test suite
Power on the device, you will hear a "DuDu" sounding ring , if there is no flickering with the device, then the power supply output voltage is normalIf a certain voltage signal was not detected, or the detected voltage value is over the normal, you will hear a "DuDu" long buzzer ; if the corresponding voltage value or PG flickers as well, then the power has failed

Specification:

Support 20Pin, 24Pin ATX interface
Support SATA interface
Support 4Pin, interface
Support PCI-E graphics card 6Pin interface
Support floppy drive interface
Support molex/Xeco power interface
Support standard 4Pin power interface, STAT hard disk interface
Test voltage: +3.3V, -12V, +5VSB, +12V1, +12V2, +5V and PG time value
Compatible with: ATX, BTX, and ITX.
Voltage source: 20/24 pin ( ATX – connector ).
Voltage test: +12V , -12V , +5V , -5V , +3.3V , +5V Stand by (SB) 12V power Good ( PG ).
Connector: Floppy, HDD, CDROM, SATA, 4-pin ( P4 ), 8-pin ( Dual-CPU ), 6-pin ( PCI-Express ).
Dimension: 3.8? L x 2.5? W x 0.8? H (97.7×63.3×20.4mm).

Features:

Digital LCD Display
Material: Plastic & Electronics
Dimension: approx. 96 x 62 x 20mm
Voltage Test: +12V, -12V, +5V, -5V, +3.3V, 5V Stand by (SB), 12V Power Good
Connectors: floppy, HDD, CDROM, SATA, 4pin (P4), 8pin (Dual-CPU), 6pin (PCI-Express)
Product type: PC 20/24 Pin ITX ATX BTX LCD Power Supply Tester. Interface Type: 20/24pin (ATX-connector).

Package Included:

1x Power Supply Tester With Digital LCD Display
