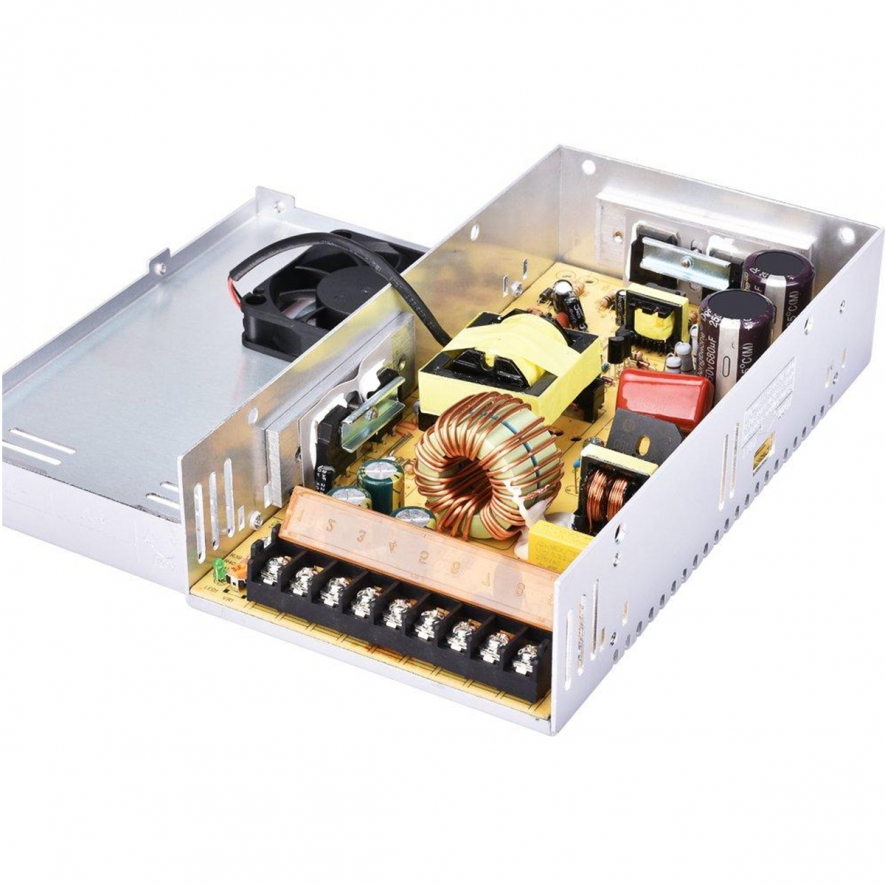

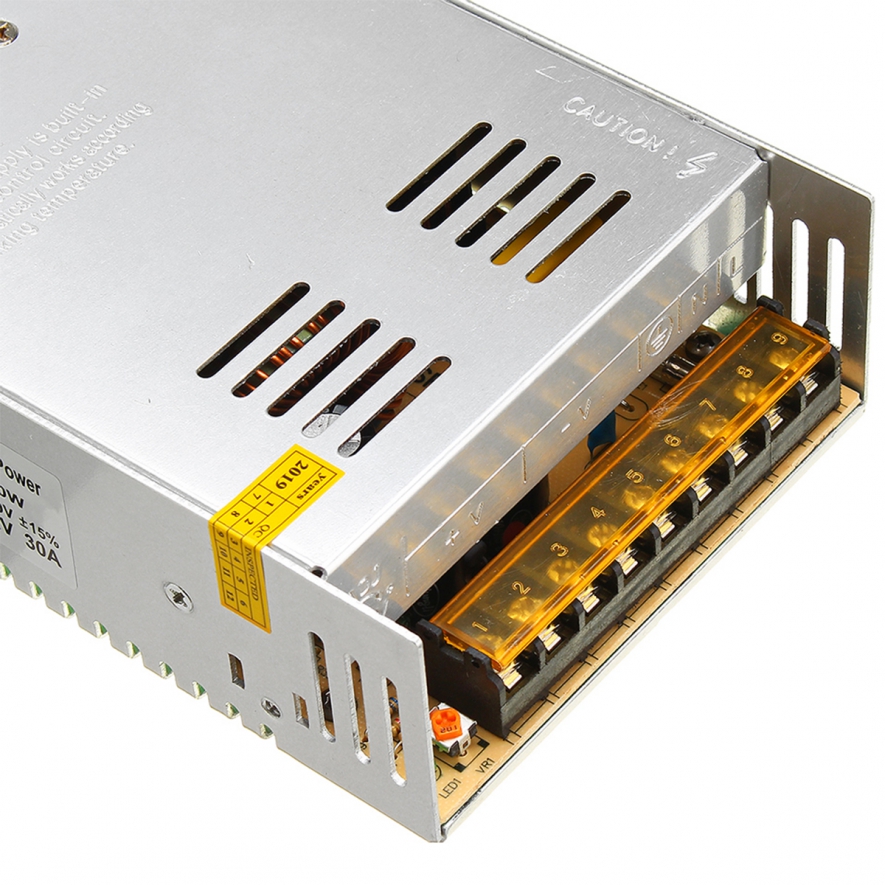

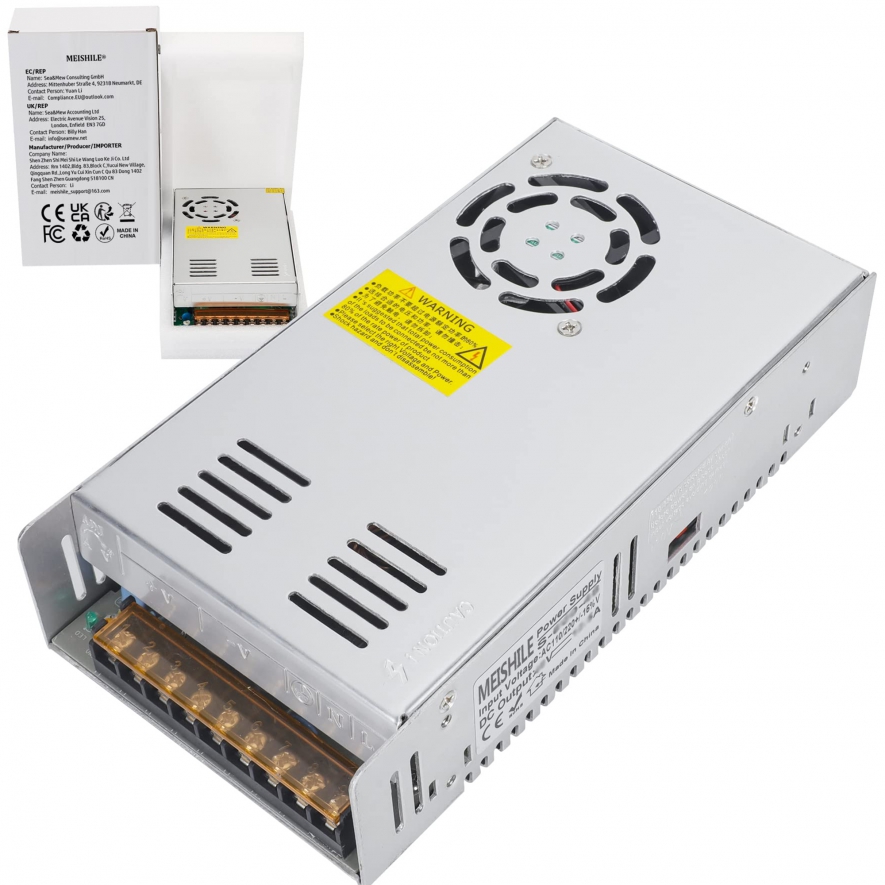

Power Supply DC 12V 30A
Item # : 2512
Stock : Yes
Price LKR:
4,500.00
Product Description, Features and Technical Details :
Product Details:
- Brand:No Brand
- Model No:No Model No
- Product Type:Power Supply
- Color:Silver
- Condition:New
- Voltage:12v 30A
- Included Quantity:1
Product Description:

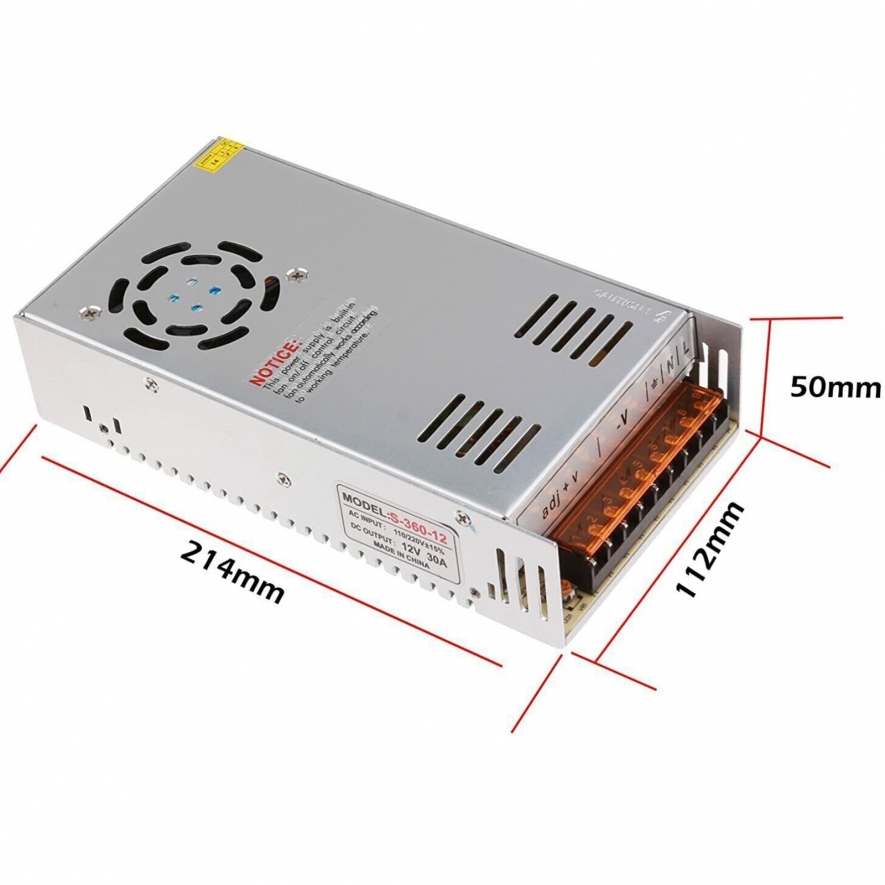

- Universal Input Voltage: AC 110V/220V , Output Power Is 12V 30A 360W , Portable, Small, Compact:215*115*50 mm Net Weight 0.7kg.
- PSU (SMPS) Convert AC To DC, Output Current Depends On The Requirements Of The Power Consuming Equipment, Power Multiple Devices With Different Currents / Watts, (Nominal Peak Not Equal To Maximum Load Current / Power).
- Used For DC 12V Voxygen / water Pump-Atomizer - Winch-Car Jack-Car Stereos-Amplifier-Radios-Air Compressor-LED Light Strip-CCTV Security Camera-Brush less Motor-Household Appliances-Electronic Devices-Automation Equipment-Computer Project-Servos-City Street Light Sand Table Toy Figure Model-Drive, Etc.
- PROPRIETARY Circuit Solutions: High EFC, Low-Loss, Long Service Life: More Than 6,000 Hours Of Service Life:Aluminum Shell, Low Stand By Power Consumption, High Efficiency.
- SAFE STABLE: Power Supply Has Over / Under Voltage, Over Heat Protection, Strictly Tested Before Leaving The Factory
Specification:
- Basic Requirements:12V 30A 360W
- Rated Voltage Range:110-220VAC
- Input voltage Range:110-220V
- Input frequency Range:47 ~ 63Hz
- Input voltage protection:115 ~ 150% Intermittent Mode
- Input voltage Recovery:Automatic Recovery
- Impact Current:1%
- Machine Efficiency:0.5%
- Output voltage Range:12V ± 0.5%
- Output Current:30A
- Ripple And Noise:100 mVp-p
- Rise Time:50ms
- Voltage Regulation Tate:0.5%
- Load Regulation:1%
- Output Over - Current Protection: Current Sag Type
- Output Short Circuit Protection:IGBT
- Output Over - Voltage Protection:Soft - Start Protection
- Insulation Resistance:> 50M
Features:
- Type:DC12V
- Watts:360W
- Input Voltage:AC110-240V 50-60HZ
- Output Voltage:DC12V±0.5
- Shell material:Aluminum Alloys
- Working Temperature:25-65
- Efficiency:80%
- Waterproof Level: IP20 Can be used indoors.
Package Included:
- 1x Power Supply DC 12V 30A
NOTE:
1) ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY.
2) ACTUAL PRODUCT MAY SLIGHTLY VARY DUE TO LIGHTING EFFECTS, MONITOR BRIGHTNESS AND CONTRAST SETTINGS, WEBSITE'S PHOTO QUALITY AND PRODUCT ENHANCEMENT.
3) PLEASE ALLOW A LITTLE SIZE ERROR DUE TO MANUAL MEASUREMENT.
THANK YOU!
