Home --> Converters --> Digital to Analog Converter with Volume Control, L/R RCA and AUX

Product Description, Features and Technical Details :

Features:

• New high-integration decoder chip for more stable decoding.
• Highly compatible, compatible with a variety of network players and Apple boxes.
• Simple and fast operation, no need to set up, no need to drive, plug and play.
• The converter has many features that make it an excellent way to perform it.

You can find these features:

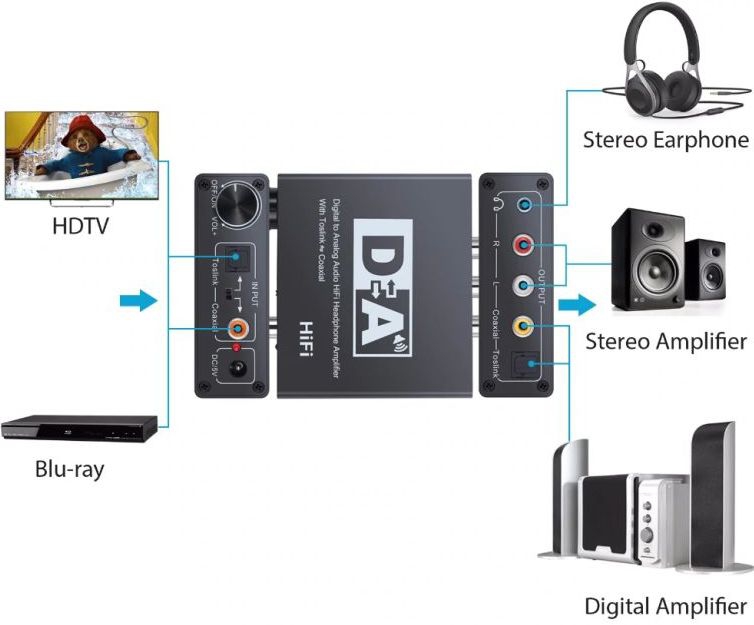

● Convert coaxial or Tosink digital audio signals to analog L / R audio
● Supports sampling rates of 32kHZ, 44.1kHZ, 48kHZ, 96kHZ and 192kHZ, up to 24-bit resolution
● 24-bit S / PDIF input bit stream on the left and right channels
● Support 16-300 ohm high-fidelity headphones
● Support for shutdown

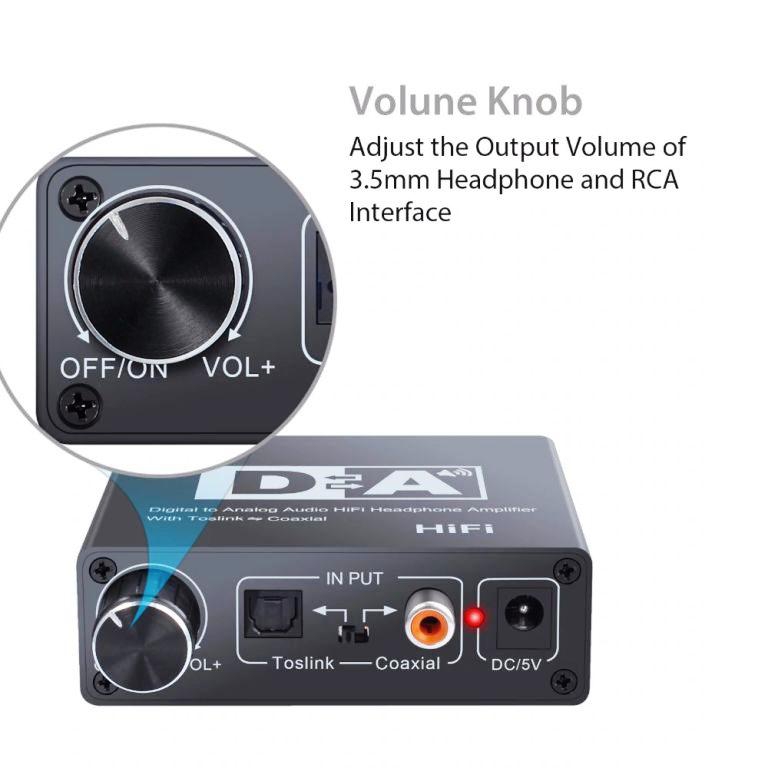

● Support volume adjustment

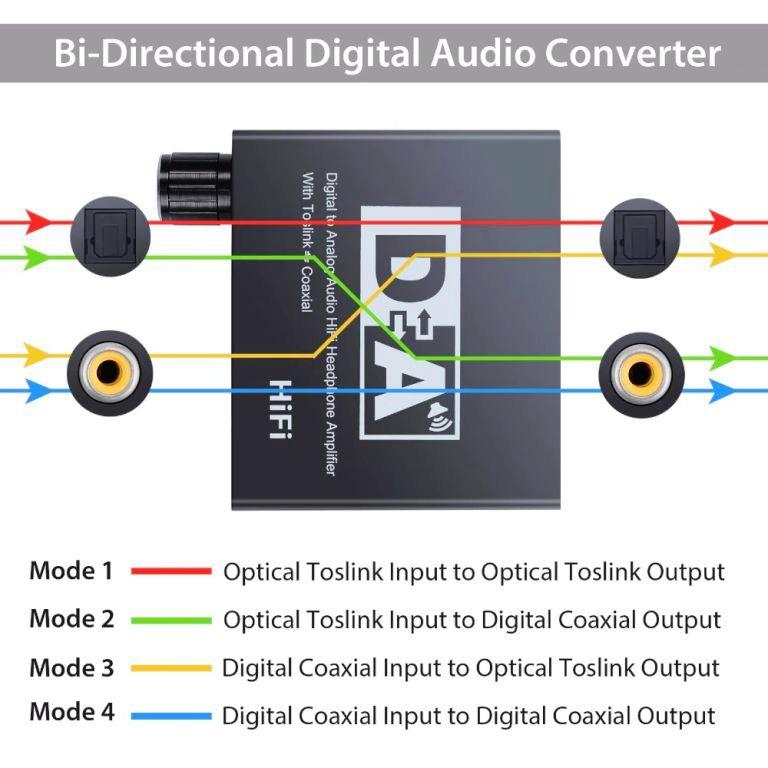

● Support Toslink input to coaxial output
● Coaxial input supporting Toslink output
● Provide no electromagnetic noise transmission
● Easy to install and easy to operate

Specifications:

• Power supply: DC 5V

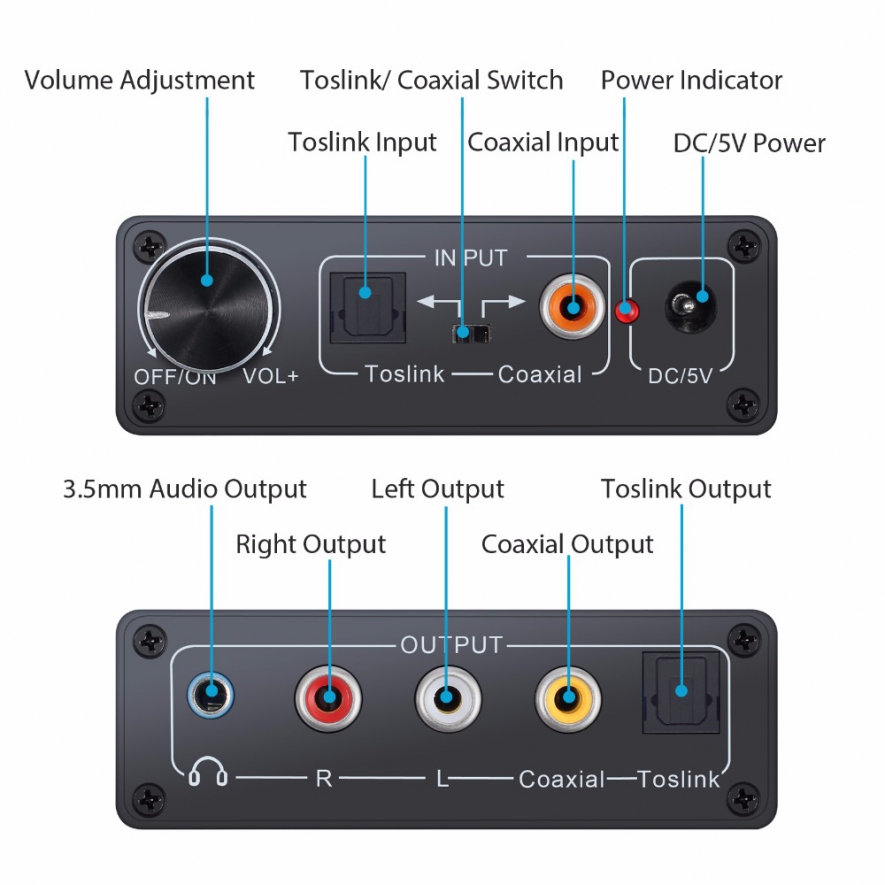

• Input: Toslink, Coaxial
• Output: L/R, Toslink, Coaxial, 3.5mm audio
• Supported sample rates: 32KHZ, 44.1KHz, 48KHz, 96KHz, 192KHz
• Headphone impedance: 16 ~ 300ohm
• Max output power: 200mW(16ohm), 20mW(300ohm)

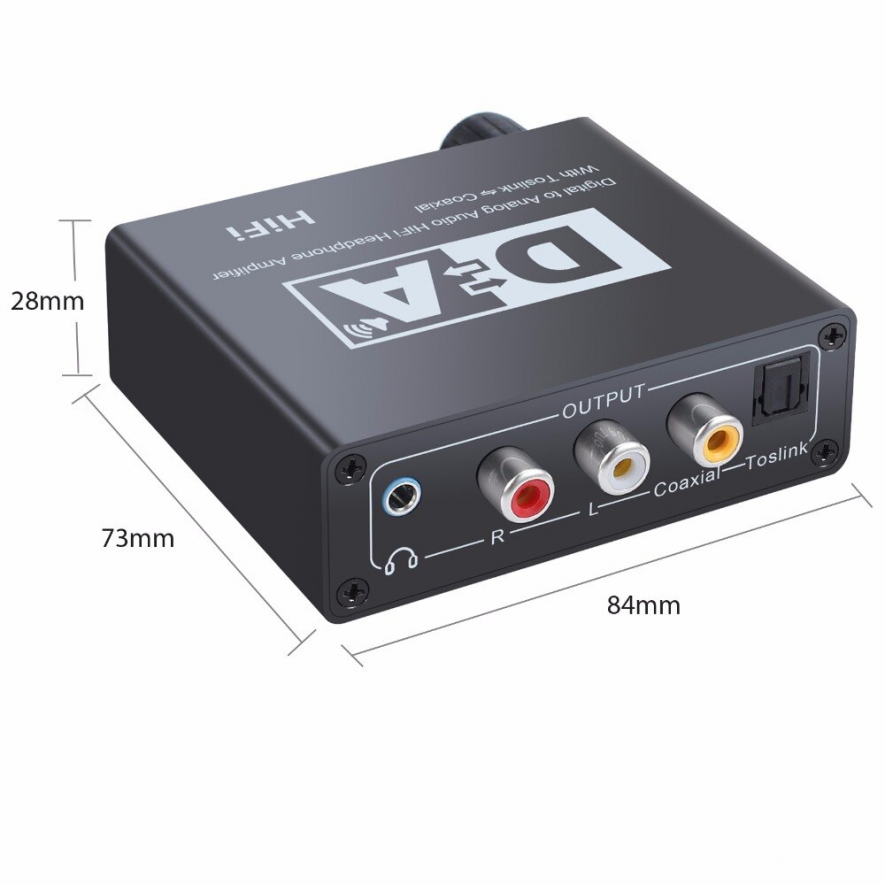

• Size: 81 x 71 x 25mm

NOTE:
1. There is a power switch on the volume knob, please turn on  the power switch before using the DAC.
2. Please set the Audio Output to the PCM/LPCM Format.
3. For Samsung TV, if there is no sound even you set the audio output to the PCM/LPCM format, please turn ON the TV external speakers (Menus-Sounds- Speaker Setup- HESB/external speaker-ON)
4. This converter doesn't Support 5.1 Channel Such As Dolby and DTS.
5. PS4 Pro and PS4 Slim CANNOT use this converter as they haven't Optical fiber output interface.

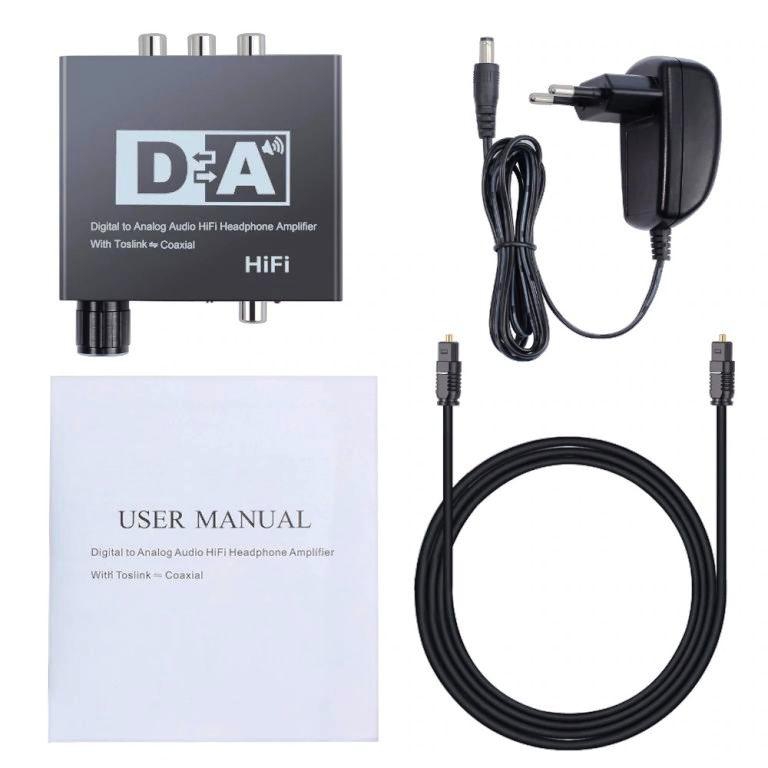

Package Include:
1 x Digital to Analog Converter with Volume Control
1 x 5V Power Supply
1 x Fiber Optic Cable
1 x User Manual

NOTE:
1) ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY.
2) ACTUAL PRODUCT MAY SLIGHTLY VARY DUE TO LIGHTING EFFECTS, MONITOR BRIGHTNESS AND CONTRAST SETTINGS, WEBSITE'S PHOTO QUALITY AND PRODUCT ENHANCEMENT.
3) PLEASE ALLOW A LITTLE SIZE ERROR DUE TO MANUAL MEASUREMENT.
THANK YOU!

Digital to Analog Converter with Volume Control, L/R RCA and AUX

Price LKR: 10,360.00         Item # : 3244
