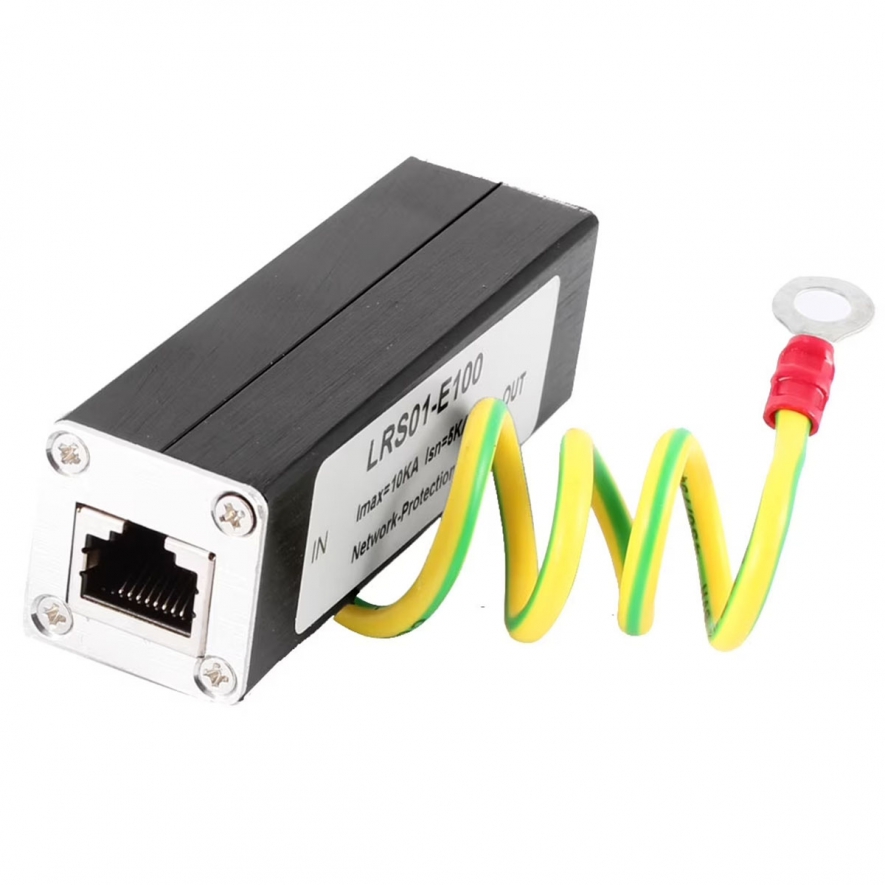

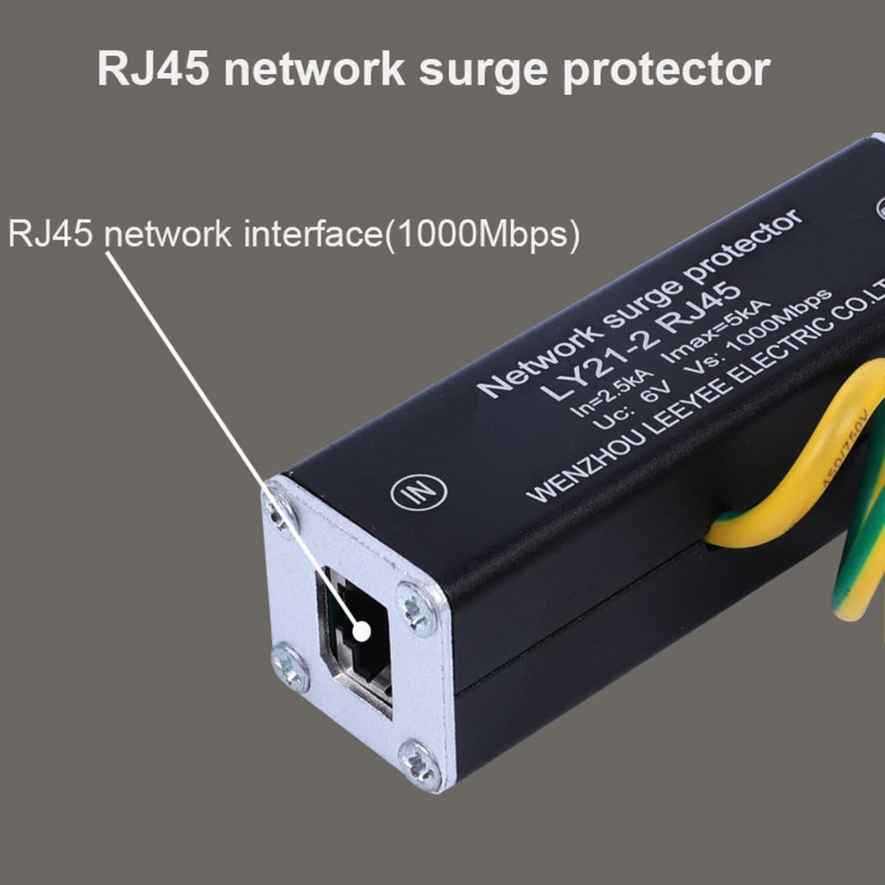

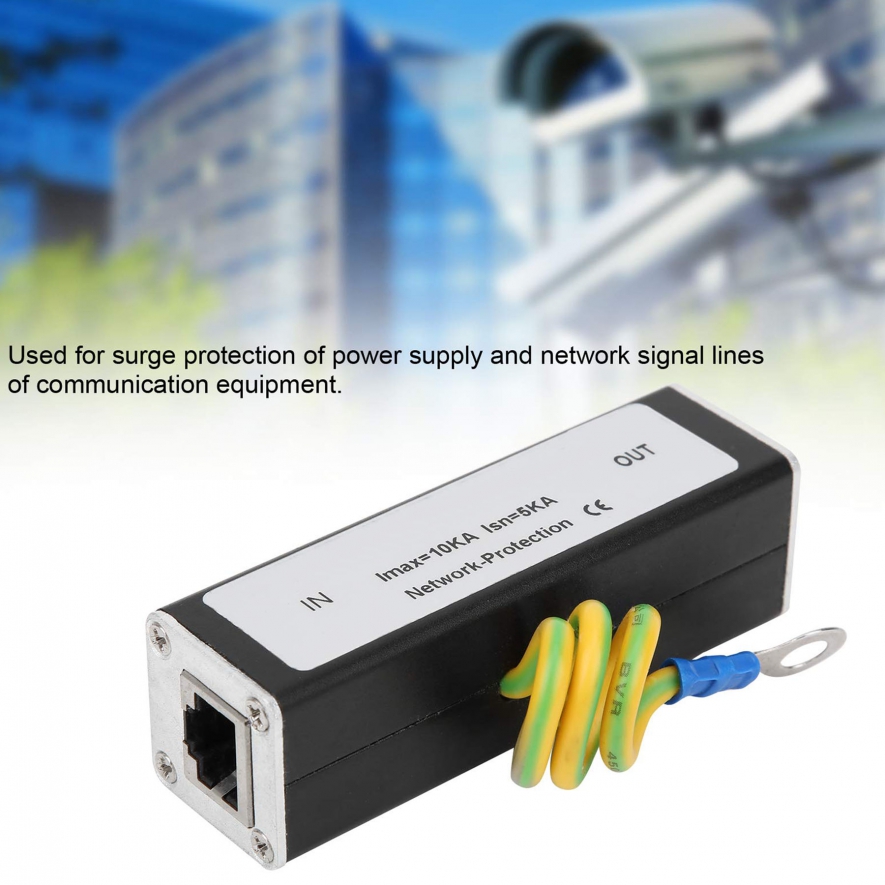

Surge Protective Device SPD RJ45 Network Signal Lightning Protector ISN:5KA IMAX:10KA
Item # : 5766
Stock : Yes
Price LKR:
2,000.00
Product Description, Features and Technical Details :
Product Details:
- Brand:OEM
- Model No:No Model
- Product Type:Surge Protective Device
- Color:Black
- Condition:New
- Included Quantity:1
Product Description:
Surge Protective Device SPD RJ45 Network Signal Lightning Protector ISN:5KA IMAX:10KA- An RJ45 Network Surge Protector Is A Compact Protective Device Designed To Safeguard Ethernet And POE (Power Over Ethernet) Network Equipment From Transient Over Voltage Events Such As Lightning Induced Surges,Electrostatic Discharge (ESD) And Electrical Spikes. It Installs Inline With Standard RJ45 Ethernet Cabling And Features Industry Compliant Protection Circuitry That Diverts Excessive Voltage To Ground Without Disrupting Normal Data Traffic. These Protectors Support Common Ethernet Speeds (10/100/1000Mbps) With Low Insertion Loss,Fast Response Time In The Nanosecond Range And Minimal Impact On Signal Integrity. They Are Suitable For Protecting Routers,Switches,IP Cameras,Access Points, VIP Devices And Other Network Equipment Exposed To Surge Risk Especially Where Cabling Enters Or Leaves A Structure. Typical Standards Compliance Includes IEC 61643-21 And Related Communication Surge Protection Norms.
Specification:
- Response Time:<1 NS.
- Insertion Loss:<1 dB @ 100 MHz.
- Connector Type:2 × RJ45 (In / Out).
- Return Loss (RL):?15 dB @ 100 MHz.
- Operating Temperature:?40°C To +85°C.
- Clamping Voltage:~10–30V (Model Dependent).
- Bandwidth:Up To 100 MHz (Depending On Model).
- POE Compatibility:Supports POE / POE+ (IEEE 802.3af/at).
- Standards:IEC 61643-21 / ITU-T K.20/K.21 (Varies By Unit).
- Supported Data Rates:10 / 100 / 1000 Mbps (Gigabit Ethernet).
- Mounting:DIN Rail Or Panel Mount (Depending On Form Factor).
- Protection Mode:Differential And Common Mode Surge Suppression.
- Protection Level:Up To ±10 kA (8/20 µs) Surge Current Per Pair (Model Dependent).
Features:- Works With POE / POE+ Devices.
- Compact Easy Inline Installation.
- Compatible With Standard RJ45 Connectors.
- Supports 10 / 100 / 1000 Mbps (Gigabit Ethernet).
- Low Insertion Loss For Minimal Signal Degradation.
- Suitable For Indoor / Outdoor Network Installations.
- Fast Response Time (Nanosecond Level Surge Suppression).
- Meets Relevant Surge Protection Standards (e.g., IEC/ITU).
- Protects Ethernet / POE Network Equipment From Lightning And Surge Damage.
Package Included:
- 1x Surge Protective Device SPD RJ45 Network Signal Lightning Protector ISN:5KA IMAX:10KA.
- 1x User Manual
NOTE:
1) ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY.
2) ACTUAL PRODUCT MAY SLIGHTLY VARY DUE TO LIGHTING EFFECTS, MONITOR BRIGHTNESS AND CONTRAST SETTINGS, WEBSITE'S PHOTO QUALITY AND PRODUCT ENHANCEMENT.
3) PLEASE ALLOW A LITTLE SIZE ERROR DUE TO MANUAL MEASUREMENT.
THANK YOU!
